214-D

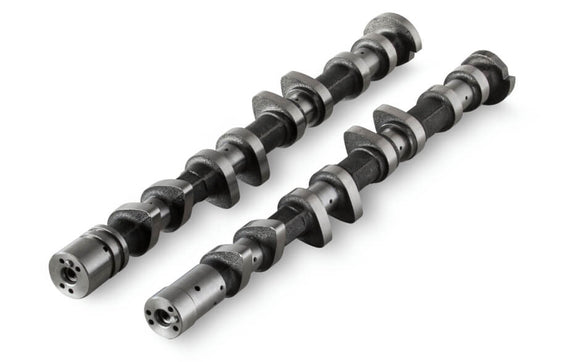

282°/288° Drag Racing Cams for professionally built Mitsubishi EVO X 4B11T engine with a well prepared cylinder head. Fuel type E85 or methanol. Suits engines running 68mm+ turbo at high boost for 1000hp+. Kelford Cams recommend valve spring KVS11-BT.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4B11T
214-D
VALVE CLEARANCE:
INTAKE:
0.30mm
SET
COLD
EXHAUST:
0.35mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.80mm
EXHAUST:
11.35mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.50mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
282°
EXHAUST:
288°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
242°
EXHAUST:
248°
TIMING AT
1.00mm VALVE LIFT
IVO:
9° BTDC
IVC:
53° ABDC
EVO:
64° BBDC
EVC:
4° ATDC
SUGGESTED CENTRELINES:
INTAKE:
112°
EXHAUST:
120°
LIFT AT TDC
VALVE
INTAKE:
2.00mm
EXHAUST:
1.40mm
