218-C

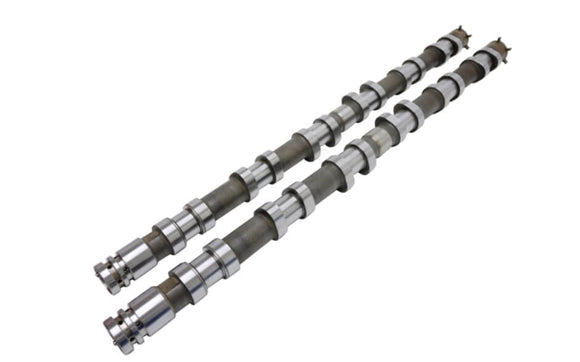

296° drag/roll racing cams to suit competition cars. These still use the OEM hydraulic lifter. Turbo sizing 76mm+ to suit the 1200-1800HP range. Use on fixed cam timing or mechanically limited cam advance/retard. Kelford Cams recommend using the KVS40-EXTREME valve spring kit.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Ford
Barra
218-C
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET
EXHAUST:
Hydraulic
SET
AT THE:
AT THE:
CAM LIFT:
INTAKE:
6.05mm
EXHAUST:
6.05mm
ROCKER RATIO:
INTAKE:
2.05
EXHAUST:
2.05
NETT VALVE LIFT:
INTAKE:
12.40mm
EXHAUST:
12.40mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
296°
EXHAUST:
296°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
250°
EXHAUST:
250°
TIMING AT
1.00mm VALVE LIFT
IVO:
12° BTDC
IVC:
58° ABDC
EVO:
63° BBDC
EVC:
7° ATDC
SUGGESTED CENTRELINES:
INTAKE:
113°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
2.30mm
EXHAUST:
1.63mm
