218-SP

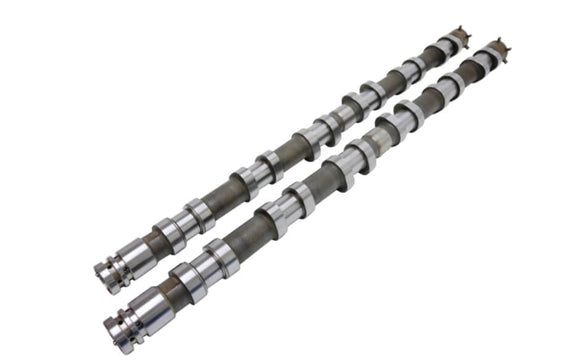

94°/302° pro drag racing cams to suit high RPM competition cars. These are to suit a solid lifter conversion, not to be used with hydraulic lifters. Suits extreme high power Barra engines making 1600hp+ with a 85mm+ turbo. Kelford Cams recommend the KVS40-EXTREME valve spring kit.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Ford
Barra
218-SP
VALVE CLEARANCE:
INTAKE:
0.40mm
SET
COLD
EXHAUST:
0.40mm
SET
COLD
AT THE:
VALVE
AT THE:
VALVE
CAM LIFT:
INTAKE:
6.24mm
EXHAUST:
6.24mm
ROCKER RATIO:
INTAKE:
2.05
EXHAUST:
2.05
NETT VALVE LIFT:
INTAKE:
12.40mm
EXHAUST:
12.40mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
294°
EXHAUST:
302°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
250°
EXHAUST:
258°
TIMING AT
1.00mm VALVE LIFT
IVO:
12° BTDC
IVC:
58° ABDC
EVO:
67° BBDC
EVC:
11° ATDC
SUGGESTED CENTRELINES:
INTAKE:
113°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
2.93mm
EXHAUST:
2.46mm
