220-D

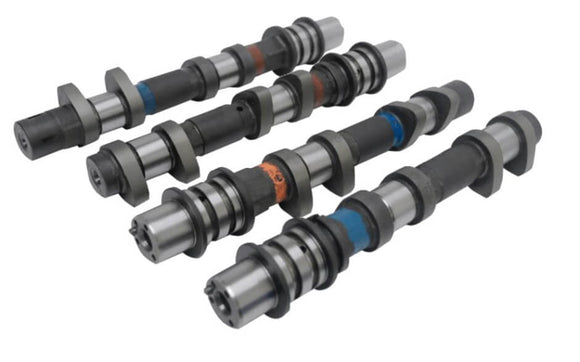

High lift 282° racing camshafts. Best suited to wide open throttle and high rpm power motorsport applications. Suits well built competition EJ257 engine running 64-72mm turbo and larger intake manifold. Great with E85 fuel. Requires cylinder head modification to fit high lift cam lobes. Kelford Cams recommend valve spring upgrade KVS1847-BT.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Subaru
EJ20/25 Dual-AVCS
220-D
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.70mm
EXHAUST:
11.25mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.50mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.25mm
INTAKE:
282°
EXHAUST:
278°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
240°
EXHAUST:
236°
TIMING AT
1.00mm VALVE LIFT
IVO:
10° ATDC
IVC:
70° ABDC
EVO:
64° BBDC
EVC:
8° BTDC
SUGGESTED CENTRELINES:
INTAKE:
130°
EXHAUST:
126°
LIFT AT TDC
VALVE
INTAKE:
0.25mm
EXHAUST:
0.43mm
