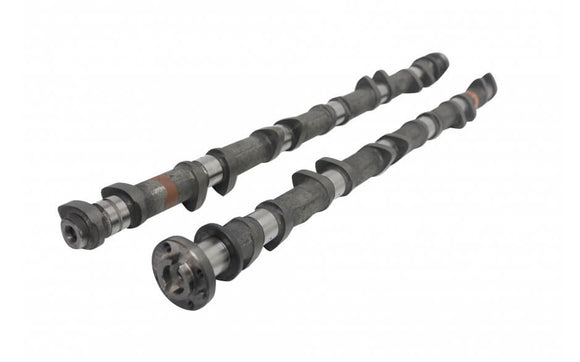

KELFORD NISSAN TB48 HIGH PERFORMANCE CAM SET

KELFORD NISSAN TB48 HIGH PERFORMANCE CAM SET

$1,293.65 CAD $1,361.68 CAD Save $68.03 CAD

Kelford Cams SKU: KEL223-A

Earn 1 Point on this purchase. Learn more
Description Availability

223-A

264° Stage 1 NA performance cams to suit near stock TB48DE engines with bolt-on intake and exhaust upgrades. Good throttle response, improved low to mid-range power. Still maintains good drivability for street engines and towing. Retains NVCS / N-VCT variable intake cam timing. Kelford Cams recommend KVS04 valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
TB48DE
223-A
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.85mm
EXHAUST:
9.85mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.60mm
EXHAUST:
9.55mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
264°
EXHAUST:
264°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
225°
EXHAUST:
225°
TIMING AT
1.00mm VALVE LIFT
IVO:
13.5° ATDC
IVC:
58.5° ABDC
EVO:
42.5° BBDC
EVC:
2.5° ATDC
SUGGESTED CENTRELINES:
INTAKE:
126°
EXHAUST:
110°
LIFT AT TDC
VALVE
INTAKE:
0.12mm
EXHAUST:
1.24mm
