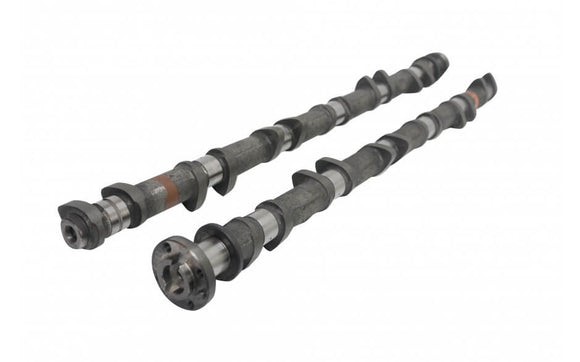

KELFORD NISSAN TB48 HIGH PERFORMANCE CAM SET

KELFORD NISSAN TB48 HIGH PERFORMANCE CAM SET

$1,293.65 CAD $1,361.68 CAD Save $68.03 CAD

Kelford Cams SKU: KEL223-B

Earn 1 Point on this purchase. Learn more
Description Availability

223-B

272° Stage 1.5 NA performance cams to suit modified TB48DE engines with bolt-on intake and exhaust upgrades. Improved mid-range to high rpm power. Retains NVCS / N-VCT variable intake cam timing. Kelford Cams recommend KVS04 valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
TB48DE
223-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.05mm
EXHAUST:
10.05mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.80mm
EXHAUST:
9.75mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
272°
EXHAUST:
272°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232°
EXHAUST:
232°
TIMING AT
1.00mm VALVE LIFT
IVO:
10° ATDC
IVC:
62° ABDC
EVO:
44° BBDC
EVC:
8° ATDC
SUGGESTED CENTRELINES:
INTAKE:
126°
EXHAUST:
108°
LIFT AT TDC
VALVE
INTAKE:
0.28mm
EXHAUST:
1.88mm
