223-T

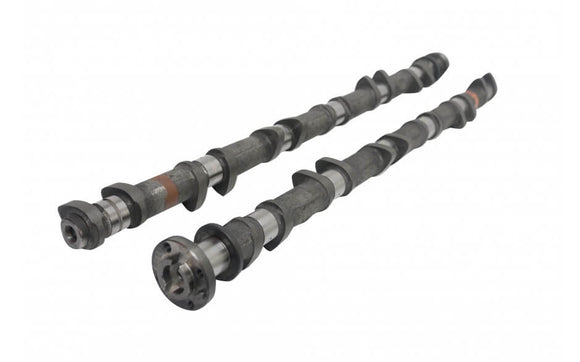

264° Stage 1 Turbo cams for street and off road applications. Low overlap to suit boosted engines, either turbo or supercharged. Good throttle response, increase in mid-range power and good drivability for the street or towing. Suits turbo sizing 60-72mm. Retains NVCS / N-VCT variable intake cam timing. Kelford Cams recommend KVS04 valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
TB48DE
223-T
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.85mm
EXHAUST:
9.85mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.60mm
EXHAUST:
9.55mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
264°
EXHAUST:
264°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
225°
EXHAUST:
225°
TIMING AT
1.00mm VALVE LIFT
IVO:
19.5° ATDC
IVC:
64.5° ABDC
EVO:
48.5° BBDC
EVC:
3.5° BTDC
SUGGESTED CENTRELINES:
INTAKE:
132°
EXHAUST:
116°
LIFT AT TDC
CAM
INTAKE:
0.15mm
EXHAUST:
1.24mm
