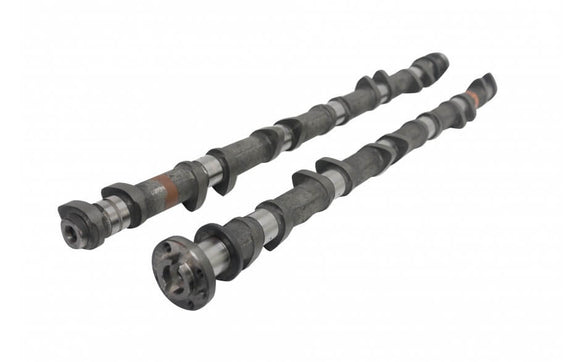

KELFORD NISSAN TB48 TURBO HIGH PERFORMANCE CAM SET

KELFORD NISSAN TB48 TURBO HIGH PERFORMANCE CAM SET

$1,293.65 CAD $1,361.68 CAD Save $68.03 CAD

Kelford Cams SKU: KEL223-T2

Earn 1 Point on this purchase. Learn more
Description Availability

223-T2

292°/302° Stage 3 Turbo cams to suit Pro drag racing engines. Fuel type E85 or methanol. 88mm+ turbo running high boost. Does not retain use of NVCS / N-VCT variable intake cam timing. Requires adjustable cam gears.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
TB48DE
223-T2
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.05mm
EXHAUST:
11.05mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.80mm
EXHAUST:
10.80mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
292°
EXHAUST:
302°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
252°
EXHAUST:
260°
TIMING AT
1.00mm VALVE LIFT
IVO:
14° BTDC
IVC:
58° ABDC
EVO:
70° BBDC
EVC:
10° ATDC
SUGGESTED CENTRELINES:
INTAKE:
112°
EXHAUST:
120°
LIFT AT TDC
VALVE
INTAKE:
2.44mm
EXHAUST:
1.96mm

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
