225-A

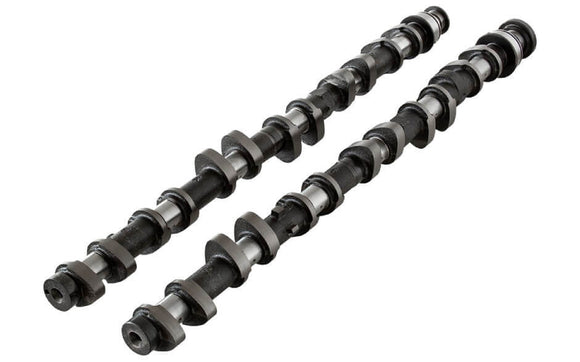

264° Stage 1 NA performance cams to suit near stock 1FZ-FE engines found in the Toyota Land Cruiser. Good throttle response, improved low to mid-range power. Still maintains good drivability for street engines and towing. Bolt-on intake and exhaust upgrades are also recommended. Kelford Cams recommend KVS04 valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1FZFE
225-A
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.95mm
EXHAUST:
9.95mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.70mm
EXHAUST:
9.65mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
264°
EXHAUST:
264°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
225°
EXHAUST:
225°
TIMING AT
1.00mm VALVE LIFT
IVO:
25.5° BTDC
IVC:
39.5° ABDC
EVO:
39.5° BBDC
EVC:
5.5° ATDC
SUGGESTED CENTRELINES:
INTAKE:
107°
EXHAUST:
107°
LIFT AT TDC
VALVE
INTAKE:
1.52mm
EXHAUST:
1.48mm
