225-B

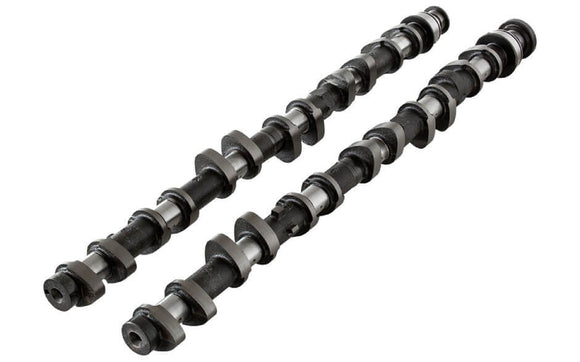

270° Stage 2 NA performance cams to suit mildly modified 1FZ-FE engines found in the Toyota Land Cruiser. Improved mid-range to high rpm power. Mild 'cammed' idle note. Still maintains good drivability for street engines. Bolt-on intake and exhaust upgrades are recommended. Kelford Cams recommend KVS04 valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1FZFE
225-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.90mm
EXHAUST:
9.95mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.65mm
EXHAUST:
9.65mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
270°
EXHAUST:
270°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232°
EXHAUST:
232°
TIMING AT
1.00mm VALVE LIFT
IVO:
9° BTDC
IVC:
43° ABDC
EVO:
43° BBDC
EVC:
9° ATDC
SUGGESTED CENTRELINES:
INTAKE:
107°
EXHAUST:
107°
LIFT AT TDC
VALVE
INTAKE:
1.94mm
EXHAUST:
1.96mm
