225-T1

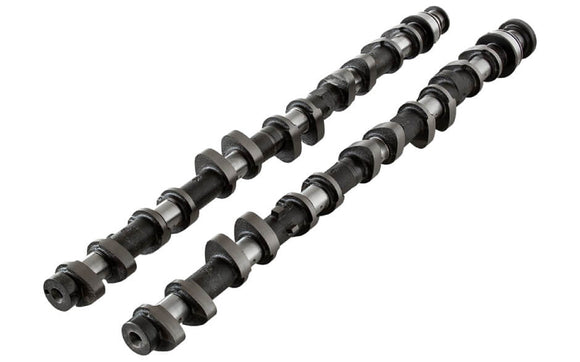

276°/284° Stage 3 turbo cams to suit highly modified 1FZ-FE engines found in the Toyota Land Cruiser. Suited to racing applications such as desert sand dune racing, drag or roll racing or where wide open throttle power is important. Improved high rpm power. 76mm+ turbo.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1FZFE
225-T1
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.60mm
EXHAUST:
10.85mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.35mm
EXHAUST:
10.55mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
276°
EXHAUST:
284°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
238°
EXHAUST:
246°
TIMING AT
1.00mm VALVE LIFT
IVO:
9° BTDC
IVC:
49° ABDC
EVO:
58° BBDC
EVC:
8° ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
115°
LIFT AT TDC
VALVE
INTAKE:
1.91mm
EXHAUST:
1.77mm
