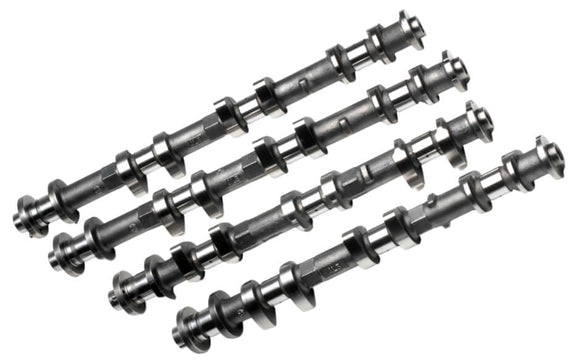

231-D
284°/290° cams to suit roll racing and drag racing. Suited to engines running high boost and high rpm. Suits engines with twin turbos in the 62mm+ range. Great with E85 or methanol fuel. Must have upgraded valve springs, Kelford Cams recommends KVS38-BT valve spring kit.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
VR38DETT
231-D
VALVE CLEARANCE:
INTAKE:
0.30mm
SET
COLD
EXHAUST:
0.33mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.90mm
EXHAUST:
10.90mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.60mm
EXHAUST:
10.57mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
284°
EXHAUST:
290°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
240°
EXHAUST:
244°
TIMING AT
1.00mm VALVE LIFT
IVO:
10° ATDC
IVC:
70° ABDC
EVO:
60° BBDC
EVC:
4° ATDC
SUGGESTED CENTRELINES:
INTAKE:
130°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
0.38mm
EXHAUST:
1.37mm
