263-C

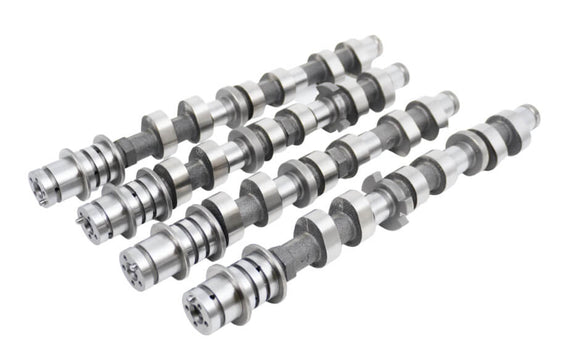

280°/286° Stage 3 drag racing cams for professionally built turbocharged 2GR engines. Suits single 76mm+ turbo or twin turbo setups in the 58-68mm range. Suited to engines making 1200-1600hp. Great with 4.0L stroker builds. Can maintain use of VVT-i with careful valve to piston clearance checking, otherwise use with fixed cam timing. Great with E85 or methanol. Kelford Cams recommends upgrading the valve spring and retainer to KVS263 for up to 8000rpm and 30psi boost.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
2GRFE
263-C
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET
EXHAUST:
Hydraulic
SET
AT THE:
AT THE:
CAM LIFT:
INTAKE:
7.09mm
EXHAUST:
6.83mm
ROCKER RATIO:
INTAKE:
1.7
EXHAUST:
1.7
NETT VALVE LIFT:
INTAKE:
12.30mm
EXHAUST:
11.65mm
ADVERTISED DURATION AT
0.1mm Lift
INTAKE:
280°
EXHAUST:
286°
DURATION AT
1mm Valve Lift
INTAKE:
242°
EXHAUST:
244°
TIMING AT
IVO:
IVC:
EVO:
EVC:
SUGGESTED CENTRELINES:
INTAKE:
variable
EXHAUST:
variable
LIFT AT TDC
INTAKE:
EXHAUST:
