267-C

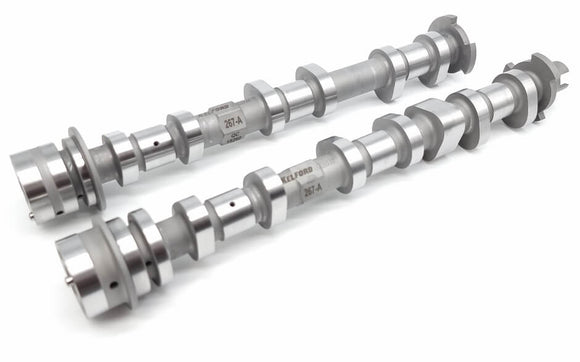

Drag racing camshafts suited to high rpm power. Suits a professionally built G16E-GTS engine for GR Yaris and 2023 GR Corolla. Turbo size 62mm+. Kelford Cams recommend KVS264 spring and retainer kit.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
G16E-GTS
267-C
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET
Hydraulic
EXHAUST:
SET
AT THE:
AT THE:
CAM LIFT:
INTAKE:
6.74mm
EXHAUST:
6.74mm
ROCKER RATIO:
INTAKE:
1.735
EXHAUST:
1.735
NETT VALVE LIFT:
INTAKE:
11.70mm
EXHAUST:
11.70mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
282°
EXHAUST:
290°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
244°
EXHAUST:
248°
TIMING AT
1.00mm VALVE LIFT
IVO:
12° BTDC
IVC:
52° ABDC
EVO:
62° BBDC
EVC:
6 ATDC
SUGGESTED CENTRELINES:
INTAKE:
110°
EXHAUST:
118°
LIFT AT TDC
VALVE
INTAKE:
2.13mm
EXHAUST:
0.98mm
