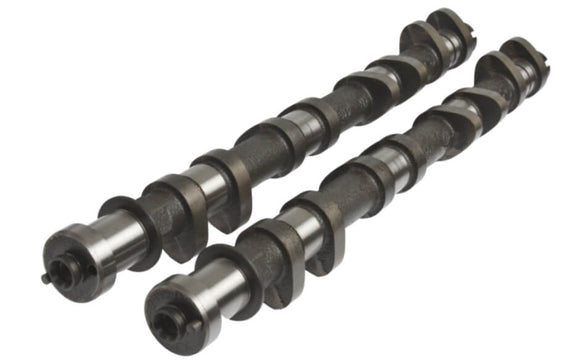

3-195-B
Naturally aspirated racing cams to suit engines with increased compression, ported cylinder head and well designed intake plenum (or 45mm ITBs) and exhaust system. More top end power than the 'A' cam, pulling to around 9k-9.5k rpm depending on engine. Great for circuit racing or rally with close ratio gearbox. Kelford Cams recommend KVS109-3S valve spring.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
3SGE Gen3
3-195-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.45mm
EXHAUST:
10.80mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.20mm
EXHAUST:
10.50mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
296°
EXHAUST:
284°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
258°
EXHAUST:
248°
TIMING AT
1.00mm VALVE LIFT
IVO:
29° BTDC
IVC:
49° ABDC
EVO:
48° BBDC
EVC:
20° ATDC
SUGGESTED CENTRELINES:
INTAKE:
100°
EXHAUST:
104°
LIFT AT TDC
VALVE
INTAKE:
4.50mm
EXHAUST:
3.37mm
