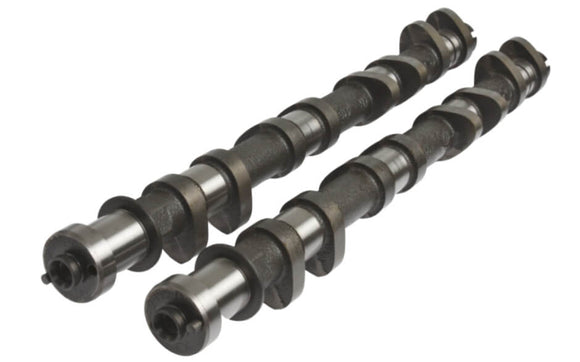

KELFORD TOYOTA 3S-GE (GEN 3) SHIM UNDER BUCKET TURBO PERFORMANCE CAM

KELFORD TOYOTA 3S-GE (GEN 3) SHIM UNDER BUCKET TURBO PERFORMANCE CAM

$922.67 CAD $971.56 CAD Save $48.89 CAD

Kelford Cams SKU: KEL3-195-TB

Earn 1 Point on this purchase. Learn more
Description Availability

3-195-TB

272° cams to suit 3S-GTE engines with upgraded turbo sizing 54-62mm making around 450-600hp. Suitable for roll racing and track cars. Good increase in mid-range to high rpm power. Great with E85. Kelford Cams recommend KVS109-3S valve spring.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
3SGE Gen3
3-195-TB
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.30mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.05mm
EXHAUST:
11.10mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.80mm
EXHAUST:
10.80mm
ADVERTISED DURATION AT
0.30mm
INTAKE:
272°
EXHAUST:
272°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
232°
EXHAUST:
232°
TIMING AT
1.00mm VALVE LIFT
IVO:
8° BTDC
IVC:
44° ABDC
EVO:
50° BBDC
EVC:
2° ATDC
SUGGESTED CENTRELINES:
INTAKE:
108°
EXHAUST:
114°
LIFT AT TDC
VALVE
INTAKE:
1.88mm
EXHAUST:
1.15mm
