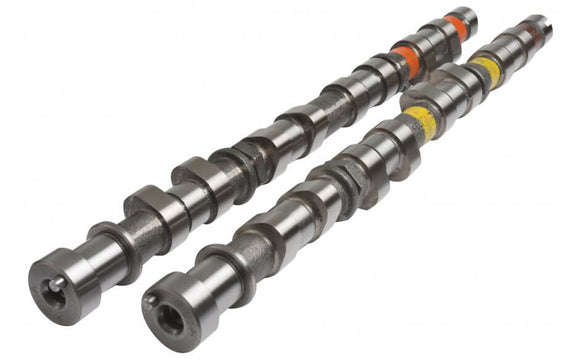

KELFORD MITSUBISHI 4G63 EVO 4-7 PERFORMANCE CAM SET

KELFORD MITSUBISHI 4G63 EVO 4-7 PERFORMANCE CAM SET

$819.56 CAD $863.14 CAD Save $43.58 CAD

Kelford Cams SKU: KEL4-TX272

Earn 1 Point on this purchase. Learn more
Description Availability

4-TX272

272° The best all round performing motorsport cams. Suits racing engines in the 400-650hp range. 54-62mm turbo size range. For up to 8500rpm and 35psi boost Kelford Cams recommend valve spring KVS63-BTK.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4G63T EVO 4-7 Hydraulic Lifter
4-TX272
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET

EXHAUST:
Hydraulic
SET

AT THE:

AT THE:

CAM LIFT:
INTAKE:
6.36mm
EXHAUST:
6.36mm
ROCKER RATIO:
INTAKE:
1.73
EXHAUST:
1.73
NETT VALVE LIFT:
INTAKE:
11.00mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
272°
EXHAUST:
272°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
226°
EXHAUST:
226°
TIMING AT
1.00mm VALVE LIFT
IVO:
6° BTDC
IVC:
40° ABDC
EVO:
46° BBDC
EVC:
0° TDC
SUGGESTED CENTRELINES:
INTAKE:
107°
EXHAUST:
113°
LIFT AT TDC
VALVE
INTAKE:
1.52mm
EXHAUST:
1.00mm
