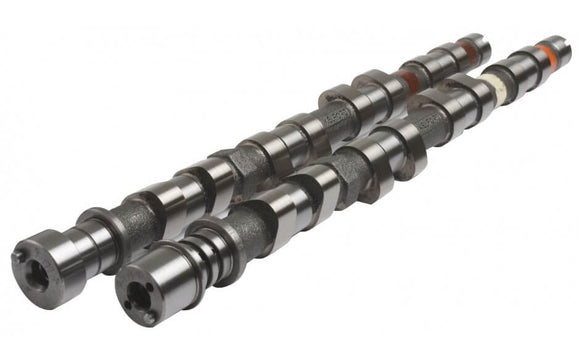

9-SLX272
EVO 9 solid lifter 272° cams. The best all round performing motorsport cams. These are the solid lifter version of our mega popular TX272 profile. Suits racing 4G63 engines in the 400-700hp range. 54-64mm turbo size range. Broader power band and improved throttle response when using MIVEC. Not for OEM hydraulic lifters, must convert to solid lifter. For up to 8500rpm and 35psi boost Kelford Cams recommend valve spring KVS63-BTK.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Mitsubishi
4G63T EVO 9 MIVEC Solid Lifter
9-SLX272
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.20mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
6.56mm
EXHAUST:
6.56mm
ROCKER RATIO:
INTAKE:
1.73
EXHAUST:
1.73
NETT VALVE LIFT:
INTAKE:
11.00mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
272°
EXHAUST:
274°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
228°
EXHAUST:
230°
TIMING AT
1.00mm VALVE LIFT
IVO:
16° ATDC
IVC:
64° ABDC
EVO:
50° BBDC
EVC:
0° TDC
SUGGESTED CENTRELINES:
INTAKE:
130°
EXHAUST:
115°
LIFT AT TDC
VALVE
INTAKE:
0.18mm
EXHAUST:
1.00mm
