T202-B

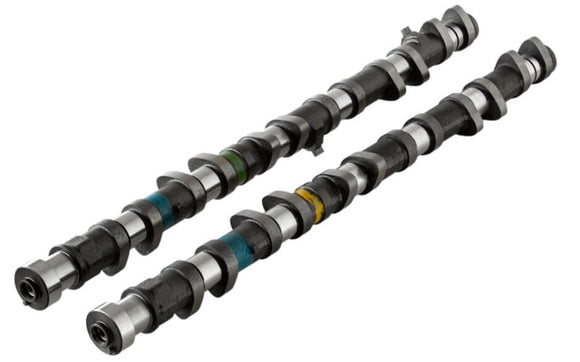

Toyota 2JZ-GTE Turbo 260° street performance cams. Improved low to mid-range power and fast spool. Good throttle response. Suits upgraded twin turbos or single turbo 54-64mm. Can use OEM valve spring up to stock boost and rpm limit. For up to 7500rpm and 30psi boost Kelford Cams recommend valve spring KVS02.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
2JZ-GTE
T202-B
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
9.60mm
EXHAUST:
9.60mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.35mm
EXHAUST:
9.35mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
260°
EXHAUST:
260°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
222°
EXHAUST:
222°
TIMING AT
1.00mm VALVE LIFT
IVO:
3° BTDC
IVC:
39° ABDC
EVO:
47° BBDC
EVC:
5° BTDC
SUGGESTED CENTRELINES:
INTAKE:
108°
EXHAUST:
116°
LIFT AT TDC
VALVE
INTAKE:
1.31mm
EXHAUST:
0.26mm
