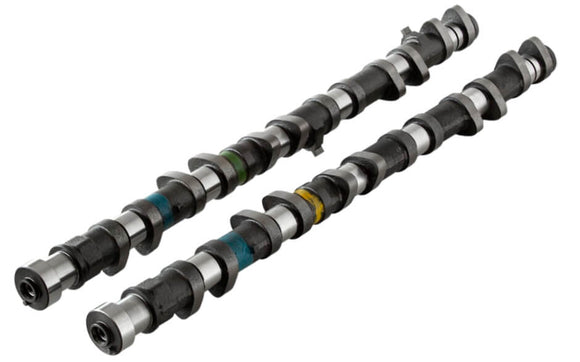

T202-G
292°/302° pro-import drag racing cams to suit extreme boost, high rpm engines running alcohol fuel. 80mm+ turbocharger. Shimless buckets such as KCF-202 are preferred for these cams. Cylinder head may require machining for clearance of high lift cam lobes. Kelford Cams recommend valve spring KVS02-BT.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
2JZ-GTE
T202-G
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.05mm
EXHAUST:
11.05mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.80mm
EXHAUST:
10.80mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
292°
EXHAUST:
302°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
252°
EXHAUST:
260°
TIMING AT
1.00mm VALVE LIFT
IVO:
14° BTDC
IVC:
58° ABDC
EVO:
70° BBDC
EVC:
10° ATDC
SUGGESTED CENTRELINES:
INTAKE:
112°
EXHAUST:
120°
LIFT AT TDC
VALVE
INTAKE:
2.44mm
EXHAUST:
1.96mm
