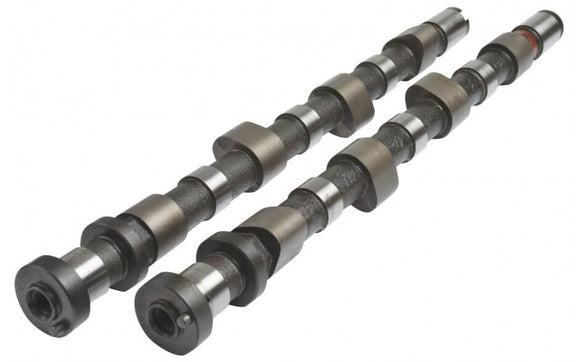

KELFORD NISSAN SR20-DE/T S14 & S15 NVCS PERFORMANCE CAM

KELFORD NISSAN SR20-DE/T S14 & S15 NVCS PERFORMANCE CAM

$666.49 CAD $701.56 CAD Save $35.07 CAD

Kelford Cams SKU: KELV-188-B

Earn [points_amount] when you buy this item.

Description Availability

V-188-B

Ultimate drift cams featuring maximum lobe area and low duration for fast spool and more top end power. Suits 58mm-66mm turbo. Requires valve spring upgrade. Wider power band using NVCS. Kelford Cams recommend valve spring KVS93 or KVS93-BT over 29psi boost.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR20DET NVCS
V-188-B
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET

EXHAUST:
Hydraulic
SET

AT THE:

AT THE:

CAM LIFT:
INTAKE:
7.74mm
EXHAUST:
7.42mm
ROCKER RATIO:
INTAKE:
1.55
EXHAUST:
1.55
NETT VALVE LIFT:
INTAKE:
12.00mm
EXHAUST:
11.50mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
268°
EXHAUST:
272°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
226°
EXHAUST:
230°
TIMING AT
1.00mm VALVE LIFT
IVO:
19° ATDC
IVC:
65° ABDC
EVO:
50° BBDC
EVC:
0° TDC
SUGGESTED CENTRELINES:
INTAKE:
132°
EXHAUST:
115°
LIFT AT TDC
VALVE
INTAKE:
0.05mm
EXHAUST:
1.06mm
