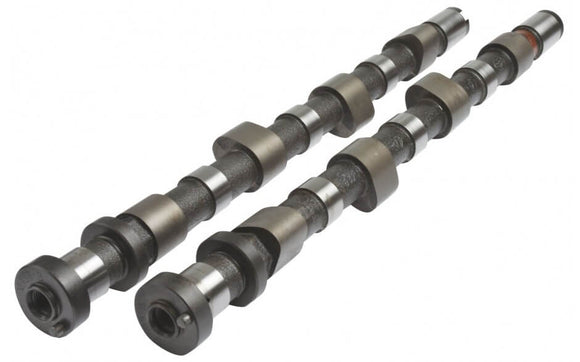

KELFORD NISSAN SR20-DE/T S14 & S15 NVCS PERFORMANCE CAM

KELFORD NISSAN SR20-DE/T S14 & S15 NVCS PERFORMANCE CAM

$666.49 CAD $701.56 CAD Save $35.07 CAD

Kelford Cams SKU: KELV-188-C

Earn [points_amount] when you buy this item.

Description Availability

V-188-C

280° racing cams to suit engines running 64mm-72mm turbo. Best suited to wide open throttle and high rpm power. Requires valve spring upgrade. Wider power band using NVCS. Kelford Cams valve spring KVS93-BT.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Nissan
SR20DET NVCS
V-188-C
VALVE CLEARANCE:
INTAKE:
Hydraulic
SET

EXHAUST:
Hydraulic
SET

AT THE:

AT THE:

CAM LIFT:
INTAKE:
8.06mm
EXHAUST:
7.74mm
ROCKER RATIO:
INTAKE:
1.55
EXHAUST:
1.55
NETT VALVE LIFT:
INTAKE:
12.50mm
EXHAUST:
12.00mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
280°
EXHAUST:
280°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
236°
EXHAUST:
236°
TIMING AT
1.00mm VALVE LIFT
IVO:
16° ATDC
IVC:
72° ABDC
EVO:
53° BBDC
EVC:
3° ATDC
SUGGESTED CENTRELINES:
INTAKE:
134°
EXHAUST:
115°
LIFT AT TDC
VALVE
INTAKE:
0.14mm
EXHAUST:
1.28mm
