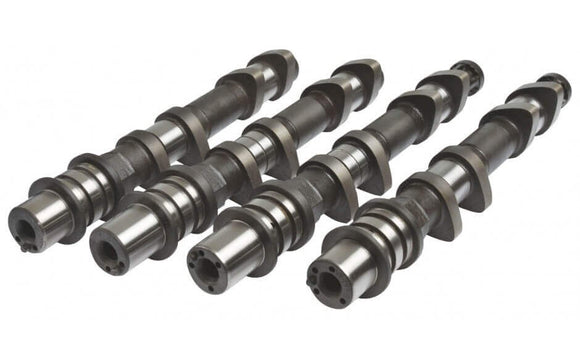

KELFORD SUBARU EJ20 JDM STI VERSION 7-10 AVCS

KELFORD SUBARU EJ20 JDM STI VERSION 7-10 AVCS

$1,401.01 CAD $1,474.36 CAD Save $73.35 CAD

Kelford Cams SKU: KELV2-199-B

Earn [points_amount] when you buy this item.

Description Availability

V2-199-B

High lift 264° Race and Rally camshafts. Great throttle response and improved mid-range power. Suits turbo sizing 54-60mm. Must use shimless buckets. Kelford Cams recommend valve spring upgrade KVS1847-BT. Paddle/tooth style trigger on rear of intake cams. AVCS on intake only.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Subaru
EJ20/25 JDM AVCS
V2-199-B
VALVE CLEARANCE:
INTAKE:
0.20mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.90mm
EXHAUST:
10.45mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
10.70mm
EXHAUST:
10.20mm
ADVERTISED DURATION AT
0.25mm
INTAKE:
264°
EXHAUST:
260°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
225°
EXHAUST:
222°
TIMING AT
1.00mm VALVE LIFT
IVO:
17.5° ATDC
IVC:
62.5° ABDC
EVO:
44° BBDC
EVC:
2° BTDC
SUGGESTED CENTRELINES:
INTAKE:
130°
EXHAUST:
113°
LIFT AT TDC
VALVE
INTAKE:
0.03mm
EXHAUST:
0.83mm
