V202-A

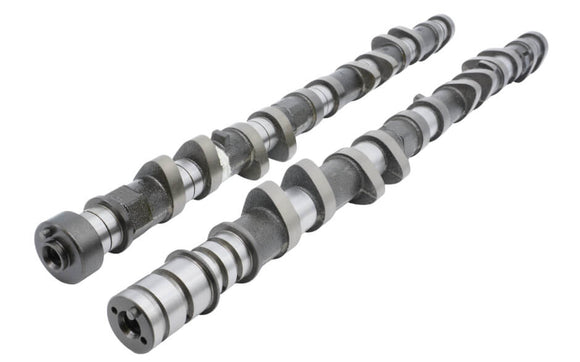

2JZ GTE VVTi Camshaft for a near stock engine. Great for street cars. Ultimate throttle response with VVTi. Improved low to mid-range power and fast spool. Suits stock twin turbos or single 54mm-58mm turbo upgrade. Can use OEM valve spring up to stock boost and rpm limit. For up to 7500rpm and 30psi boost Kelford Cams recommend valve spring KVS02.
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
2JZ-GTE VVTi
V202-A
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
8.95mm
EXHAUST:
8.95mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
8.70mm
EXHAUST:
8.70mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
248°
EXHAUST:
248°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
210°
EXHAUST:
210°
TIMING AT
1.00mm VALVE LIFT
IVO:
IVC:
EVO:
41° BBDC
EVC:
11° BTDC
SUGGESTED CENTRELINES:
INTAKE:
vvt-i
EXHAUST:
116°
LIFT AT TDC
VALVE
INTAKE:
EXHAUST:
0.26mm
