V202-F

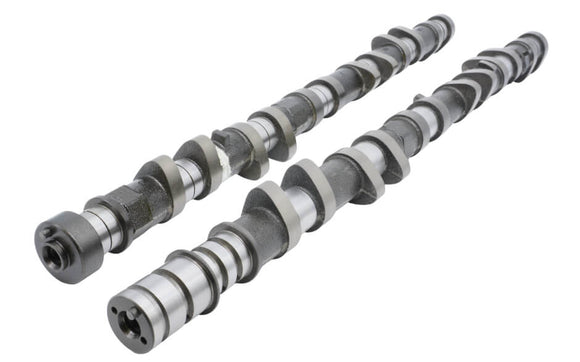

2JZ Engine VVTi Camshaft 282°/286° high lift racing cams to suit engines running alcohol based fuels and 72mm+ turbo. Improved throttle response when using VVTi.These high velocity cams require a shimless bucket or shim-under bucket conversion, such as the DLC coated bucket KCF-202. Cylinder head may require machining for clearance of high lift cam lobes. Kelford Cams recommend valve spring KVS02-BT
Camshaft Specifications
ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
2JZ-GTE VVTi
V202-F
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
11.25mm
EXHAUST:
11.25mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
11.00mm
EXHAUST:
11.00mm
ADVERTISED DURATION AT
0.1mm VALVE LIFT
INTAKE:
282°
EXHAUST:
286°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
244°
EXHAUST:
248°
TIMING AT
1.00mm VALVE LIFT
IVO:
IVC:
EVO:
73° BBDC
EVC:
5° BTDC
SUGGESTED CENTRELINES:
INTAKE:
vvt-i
EXHAUST:
120°
LIFT AT TDC
VALVE
INTAKE:
EXHAUST:
1.40mm
