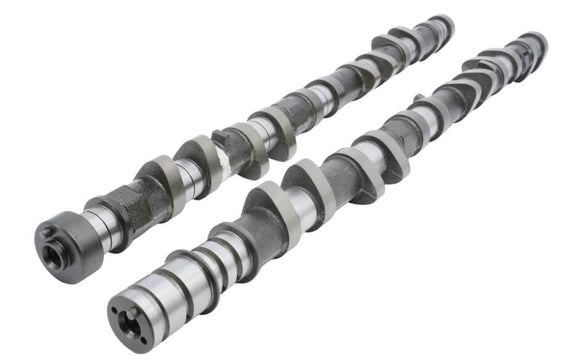

KELFORD TOYOTA 1JZ VVTI BILLET RACE CAMS

KELFORD TOYOTA 1JZ VVTI BILLET RACE CAMS

$1,166.09 CAD $1,227.75 CAD Save $61.66 CAD

Kelford Cams SKU: KELV229-D

Earn [points_amount] when you buy this item.

Description Availability

V229-D

272°/278° 1JZ-GTE racing camshaft. These are our most popular cams for a vast range of motorsport applications. Ultimate throttle response with VVT-i. More top end and maximum power than V229-C. Suits single 64mm-76mm turbo. Great with E85. Kelford Cams recommend valve spring KVS109-1JZ.

Camshaft Specifications

ENGINE MAKE:
ENGINE MODEL:
PART NUMBER:
Toyota
1JZ-GTE VVTi
V229-D
VALVE CLEARANCE:
INTAKE:
0.25mm
SET
COLD
EXHAUST:
0.25mm
SET
COLD
AT THE:
CAM
AT THE:
CAM
CAM LIFT:
INTAKE:
10.20mm
EXHAUST:
10.20mm
ROCKER RATIO:
INTAKE:
1
EXHAUST:
1
NETT VALVE LIFT:
INTAKE:
9.95mm
EXHAUST:
9.95mm
ADVERTISED DURATION AT
0.10mm
INTAKE:
272°
EXHAUST:
278°
DURATION AT
1.00mm VALVE LIFT
INTAKE:
236°
EXHAUST:
240°
TIMING AT
1.00mm VALVE LIFT
IVO:

IVC:

EVO:
60° BBDC
EVC:
0° ATDC
SUGGESTED CENTRELINES:
INTAKE:
vvt-i
EXHAUST:
120°
LIFT AT TDC
VALVE
INTAKE:

EXHAUST:
0.94mm

    This website does not show live stock.

    If the product is in stock we ship same/next day.

    If a product needs to be ordered in the typical wait time is 1-2 weeks.

    Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

    Please contact us for an accurate ETA and availability.
