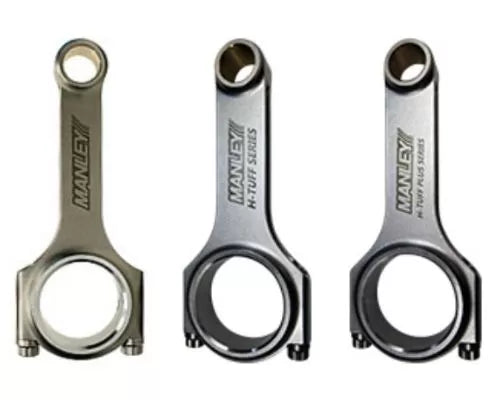

Manley 93-98 Toyota Supra 3.0 2JZ H Beam Connecting Rod

15027-1

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the "H" Beam and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.

Specification:

• Center-to-Center: 5.590"
• Big End Bore: 2.167"
• Big End Width: 1.015"
• Pin Diameter: .866" (22mm)
• Pin Bore: .8671"
• Gram Weight: 636

Fitment:

• Toyota Supra 3.0 2JZ 1993-1998 - H-Tuff Series with heavier beam for higher boost applications.

Notes:

• Sold individually
