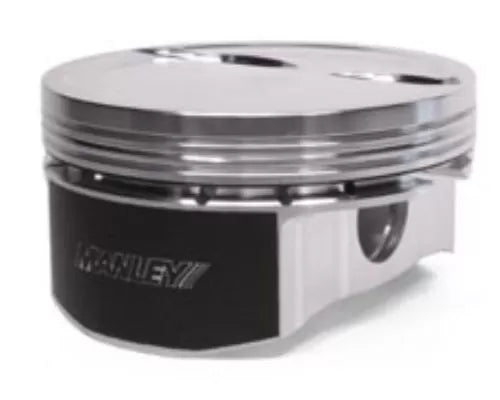

Manley LS-1/LS-2/LS-6, LS-3/L-92, LS-7 PLATINUM SERIES LIGHTWEIGHT PISTON SET -18cc DISH

596230CE-8

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.5, 1.5, 3mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locksand pressure balance grooves are included with every set at no additional charge.

Premium Chrome Moly wrist pins are included with the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.

Specifications:

• Bore Size: 4.030
• Rod Length: 6.125"
• Stroke (mm): 4.000"
• Comp Distance: 1.115"
• Pin Diameter: .927"
• Dome Volume (cc): -18
• Piston Type: Dish
• Combustion Chamber (64cc): 10.2
• Combustion Chamber (66cc): 10.0
• Combustion Chamber (70cc): 9.6
• Combustion Chamber (72cc): 9.5
• Piston Wt/Gms: 408
• Valve Pocket: LS-1,2,3,6,92
• Included Ring Set
• Ductile Iron Top Rings: 46113-8
• Premium Steel Top Rings: 46113ST-8

Fitments:

• Chevrolet LS-1/LS-2/LS-6 | LS-3/L-92 | LS-7 for 4.00" Stroke

Note:

• Compression ratios are calculated at 0.00" deck clearance, a 9.240" deck height, and a .042" thick compressed head gasket.
