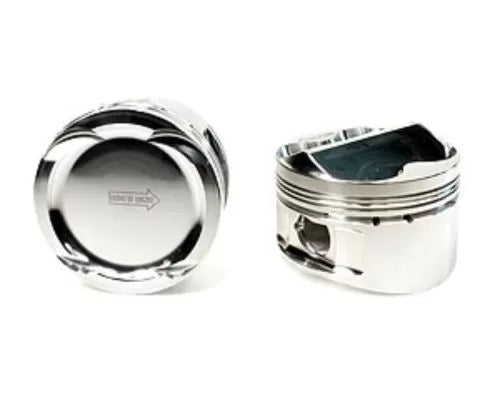

Manley 02+ Honda CRV (K24A-A2-A3) 87mm STD Bore 11.5:1 Flat Top Piston Set with Rings

611100-4

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

Specifications (K20 / K24 Series):

• Bore Size (mm): 87
• Over Size: STD
• Rod Length: 5.984"
• Stroke: 3.897"
• Comp. Distance: 1.181"
• Dome Volume (cc): -1.0
• Comp. Ratio: 11.5:1
• Piston Type: Flat Top
• Pistons Wt / Gms: 339
• Premium Steel Top Rings: 46870-4

Fitment:

• Honda CR-V 2002 Up - K24A w/ K20A-A2-A3 Head DOHC V-Tec .866"/22mm x 2.500" Pin x .150" Wall Pin

Note:

• Skirt coating is optional on above part numbers with 80 pc minimum order.

  Make	Model	Submodel	Year	Engine	Notes
  Honda	CR-V		2002-2022
