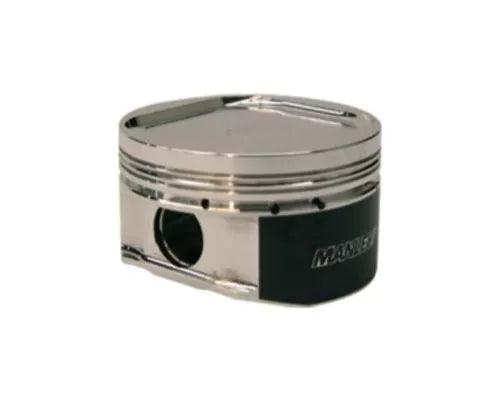

Manley 98+ Subaru WRX (EJ205) 75mm STD Stroke 92.5mm +0.5mm Bore 8.5:1 Dish Piston Set with Rings

615005C-4

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available. Recommended clearance: .003" for mildly boosted and .0035" for highly boosted measured .850" (79mm Stroke) and 1.100" (75mm Stroke) from the bottom of the oil ring groove. Like all Manley Subaru pistons, these are made from 2618 alloy, utilize an offset wrist pin design, are skirt coated and include our standard 2.500" x .180" wall premium chrome moly wrist pin (P/N 42346). 9310 alloy .210" wall pin upgrades are available. Simply order the EXTREME DUTY part number in the column below. These come equipped with the 9310 pins (P/N 42546).

Specifications (75mm STD Stroke 2.0L):

• Bore Size (mm): 92.5
• Over Size: +.5mm
• Rod Length: 5.137"
• Stroke (mm): 75
• Comp. Distance: 1.285"
• Dome Volume (cc): -12
• Cylinder Head (cc): 48
• Comp. Ratio: 8.5
• Piston Type: Dish
• Pistons Wt / Gms: 375
• Premium Steel Top Rings: 46925DT-4

Fitment:

• Subaru WRX 1998 Up - EJ205 .9055"/23mm x 2.500" Pin x .180" Wall

Notes:

• Sold as a Set of 4

  Make	Model	Submodel	Year	Engine	Notes
  Subaru	WRX		2002-2022
