637001CE-4

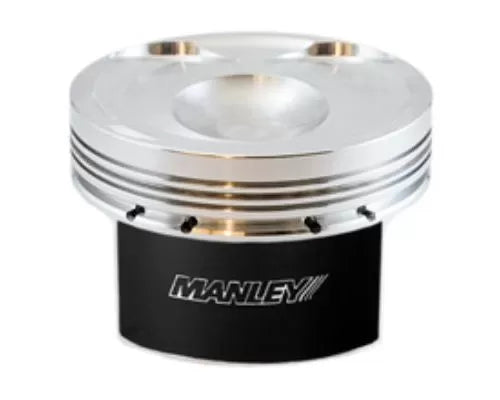

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.2, 1.2, 2.8mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks and pressure balance grooves are included with every set at no additional charge.
Premium Chrome Moly wrist pins are included in the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.
Specifications (94mm Stroke):
- Bore Size (mm): 87.6
- Over Size: +.1mm
- Rod Length: 5.875"
- Stroke (mm): 94
- Comp Distance: 1.291"
- Dome Volume (cc): -8
- Comp Ratio: 9.5
- Piston Type: Dish
- Piston Wt/Gms: 384
- Included Ring Set: 46876-4
Fitments:
- Ford Focus RS 2016-Up, Mustang 2015-Up (.886"/22.5mm x 2.250" Pin)
Make Model Submodel Year Engine Notes Ford Focus RS 2016-2020 Ford Mustang 2015-2022
