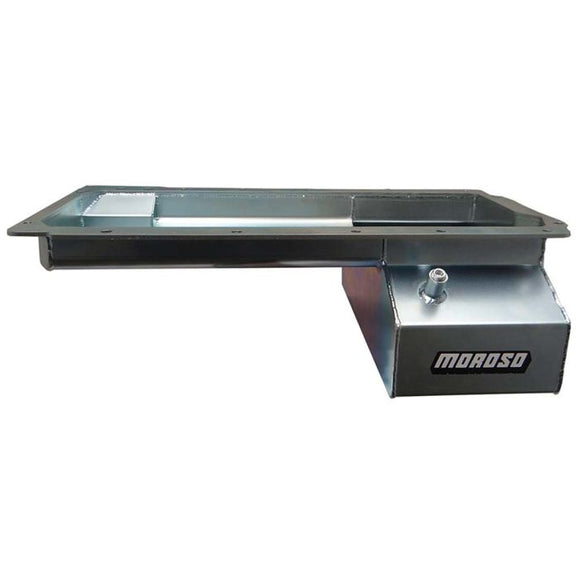

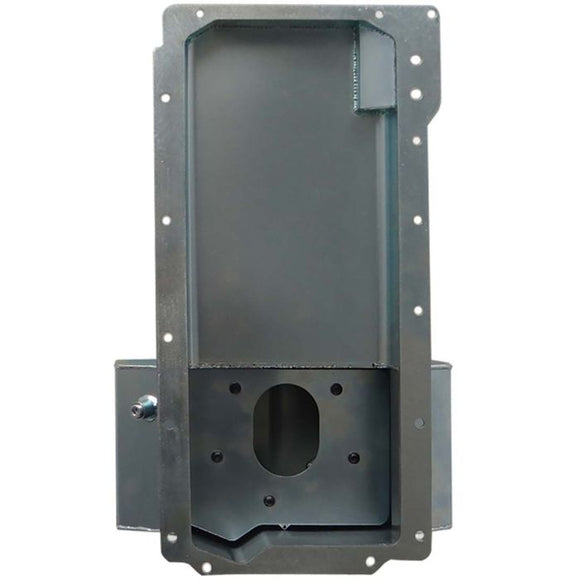

Moroso GM LS Swap (w/Front Sump & Spin-On Oil Filter Adapter) Wet Sump 6.5qt 6in Steel Oil Pan

20138

Steel, Wet Sump, 6.5 Quart Capacity, 6" Deep Baffled

Engine Application: GM LS Series

Fits: LS Engine Conversions that require a Front Sump Oil Pan with a Spin-on Filter provision(Check Measurements)

• Oil pan has a thick precision laser cut steel rail with a clear zinc finish
• Clears 4.25" stroke with most steel rods
• Features a race proven diamond shape four trap door assembly and removable anti-slosh baffle that keeps oil contained in oil pump pick up area during Drifting, Road Racing and Drag Racing
• Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
• Accepts GM Part 12558253 Windage Tray with modification
• Features a billet aluminum adapter that allows a 22mm thread Moroso No. 22463 or O.E.M. oil filter to be mounted in the stock loction, no need to run a remote oil filter
• Included billet aluminum filter adapter has a 1/4" N.P.T. sensor port
• Dipstick Fitting for required oil pan mounted dipstick
