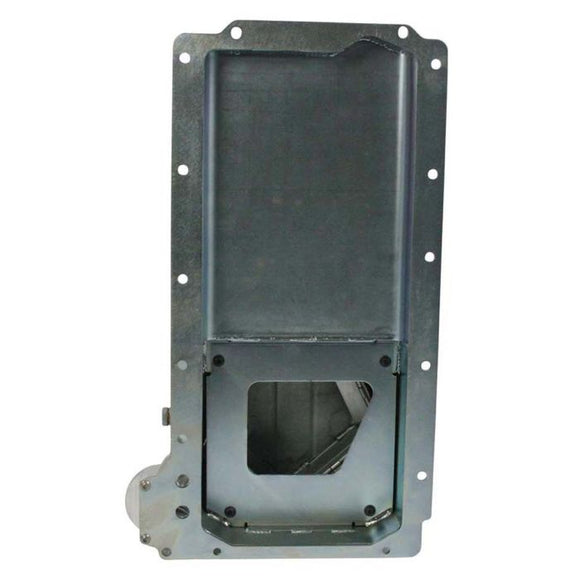

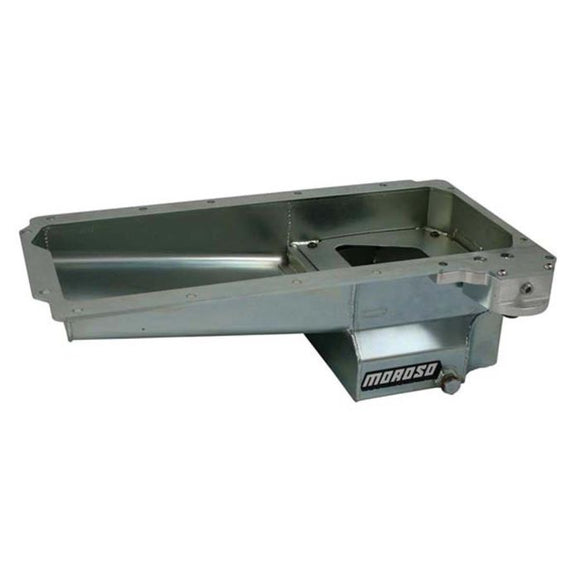

Moroso GM LS Swap (w/Rear Sump & Spin-On Oil Filter Adapter) Wet Sump 7qt 6in Angled Steel Oil Pan

20143

Steel, Wet Sump, 7 Quart Capacity

Engine Conversion Race Baffled. Angled Sump, Fully Fabricated Steel Oil Pan

Engine Application: GM LS Series

Fits: '67-'15 Camaro/Firebird, '68-'78 Nova, '65-'72 Chevelle, '53-'96 Corvette, '78-'88 G-Body and GM S10/S15 Two Wheel Drive Blazer/Truck. Can also be used in additional applications: check dimensions for clearance

• Two versions available: No. 20143 has a Billet Aluminum Spin-On Oil Filter Adapter that accepts a 22mm thread. Moroso No. 22463 or O.E.M. oil filter to be mounted in the stock location, clears 4.25" stroke No. 20149 has a Billet Aluminum Remote Oil Filter Adapter that has two straight -10AN ports for remote filter installation, clears 4.25" stroke
• Oil pan has a thick precision laser cut steel rail and a clear zinc finish
• Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
• Designed to be used with GM F-Body 98-02 dipstick tube GM Part No. 12628771 and dipstick GM Part No. 12551581
