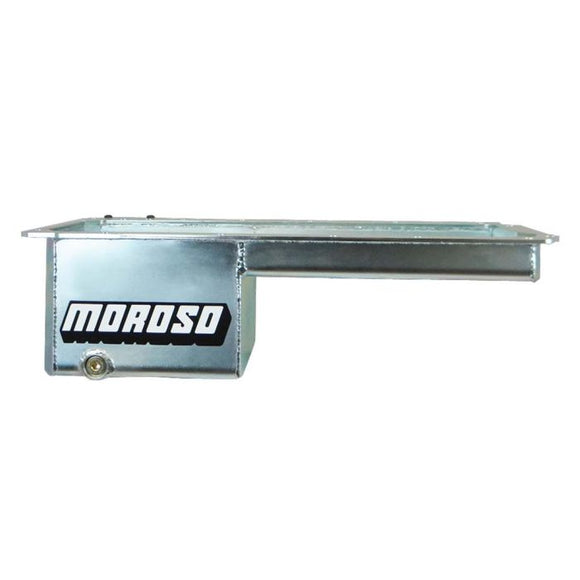

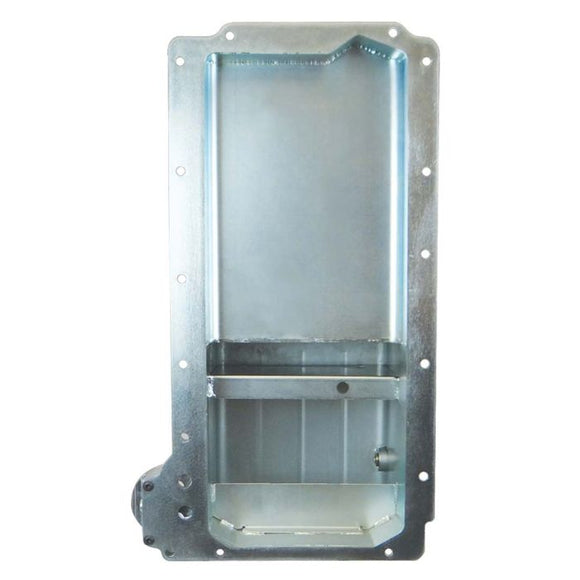

Moroso GM LS Swap (w/Rear Sump & Spin-On Oil Filter Adapter) Wet Sump 5qt 6in Steel Oil Pan

20145

Steel, Wet Sump, 5 Quart Capacity, 6" Deep

Engine Application: GM LS Series

Fits: Fits: LS Engine Conversions that require Rear Sump (Check Measurements)

• Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish
• Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction
• Clears 4.25 stroke with most steel rods
• Front of the oil pan is 1.813 deep to the beginning of the 6 Deep, 8.107" Wide and 8.378" long sump
• Anti-climb baffle; magnetic drain plug and uses a stock dipstick
• Features a billet aluminum adapter that allows a 22mm thread Moroso No. 22463 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
• Included billet aluminum oil filter adapter has a 1/4" N.P.T. sensor port
