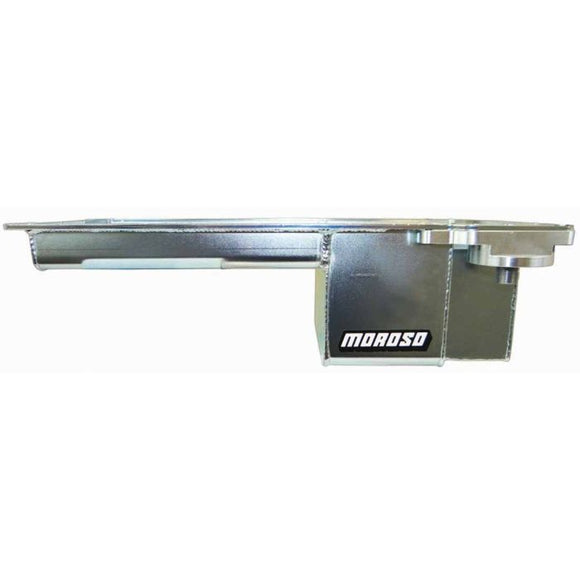

Moroso GM LS Swap/A-Body (w/Rear Sump & Spin-On Filter Adapter) Wet Sump 6in Narrow Steel Oil Pan

20150

Steel, Wet Sump, 5 Quart Capacity

Engine Application: GM LS Series

Fits: LS Engine Conversions that require a narrower Rear Sump (Check Measurements) for "Block Hugger" headers

• Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish
• Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction
• Clears 4.25 stroke with most steel rods
• Front of the oil pan is 1-7/8" deep to the beginning of the 6" Deep, 8-5/16" Wide, and 8-3/8" Long sump

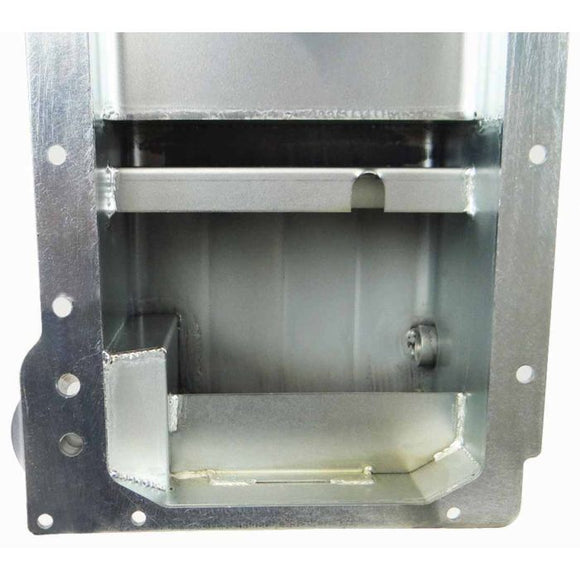

• Anti-climb baffle; Magnetic drain plug and uses a stock dipstick
• Features a detachable, billet aluminum adapter that allows a 13/16" thread Moroso No. 22462 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
• Accepts Moroso Part No. 22941 or 22943 Windage Tray
