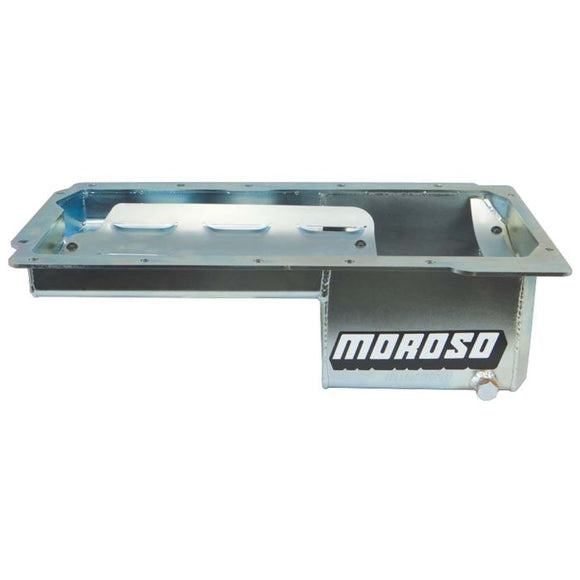

Moroso Dart LS Next Swap (w/Aluminum Spacers) Wet Sump 7qt 6in Baffled Steel Oil Pan

20151

Steel, Wet Sump, 7 Quart Capacity, 6" deep, Baffled

Engine Application: Dart LS Next Engine Blocks with Moroso Billet Aluminum Spacer Kit

Fits: 1967-'92 Camaro, 1968-'78 Nova, 1965-'72 Chevelle, 1953-'96 Corvette, 1978-'88 G-Body, and GM S10-S15 Two Wheel Drive Blazer-Truck

• Pan does not include Moroso Oil Pan Spacer Kit No. 22934
• Oil pan has a 3/16" thick precision laser cut steel rail specifically designed for the LS Next Engine Block

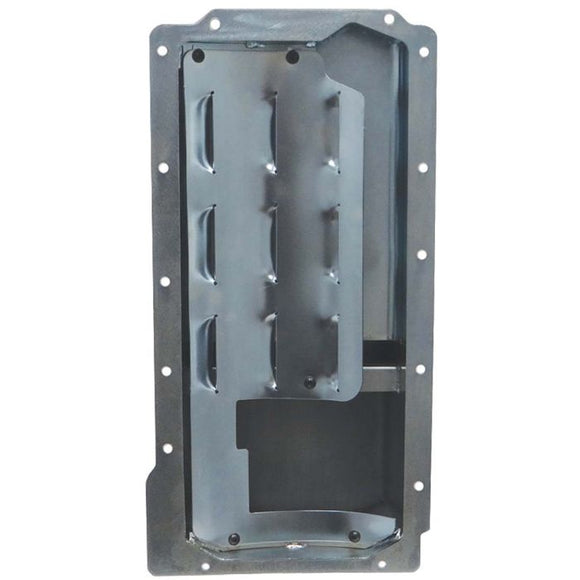

• Features a trap door baffle and a removable windage tray for horsepower savings and oil control
• Has a 16 gauge steel sump to stand up to the toughest racing conditions
• Front of the oil pan is 2" deep to the beginning of the 6" deep sump
• The sump is 8-1/2" long and 8-5/8" wide
• Clears 4.25" stroke with most steel rods
