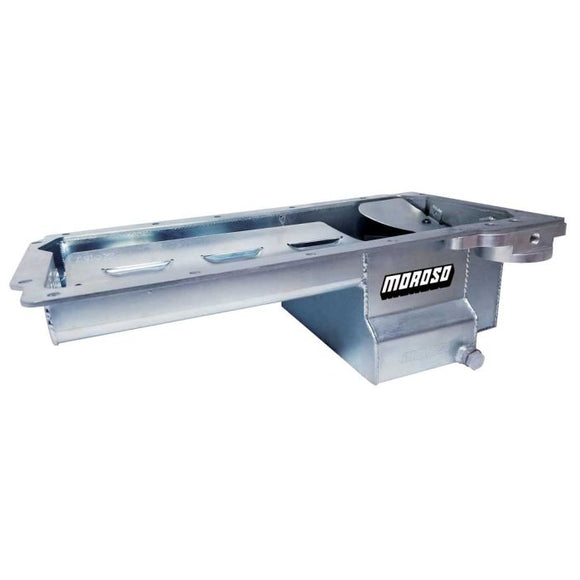

Moroso Dart LS Next Swap (w/Aluminum Spacers) Wet Sump 7qt 6in Road Race Baffled Steel Oil Pan

20152

Steel, Wet Sump, 7 Quart Capacity

Early F-Body/Swap

Engine Application: Dart LS Next Gen 3 Skirted Block

Fits: ’67-’92, ’10-’15 Camaro, ’68-’78 Nova, ’65-’72 Chevelle, ’53-’96 Corvette, ’78-’88 G-Body, and GM S10/S15 Two Wheel Blazer/Truck, Can also be used in additional applications; check dimensions for clearance

• Oil pan has a thick precision laser cut steel rail specifically designed for the LS Next Gen 3 Skirted Engine Block, fabricated steel sump with a clear zinc finish
• Clears a 4.25” stroke and has a 7 Quart Capacity

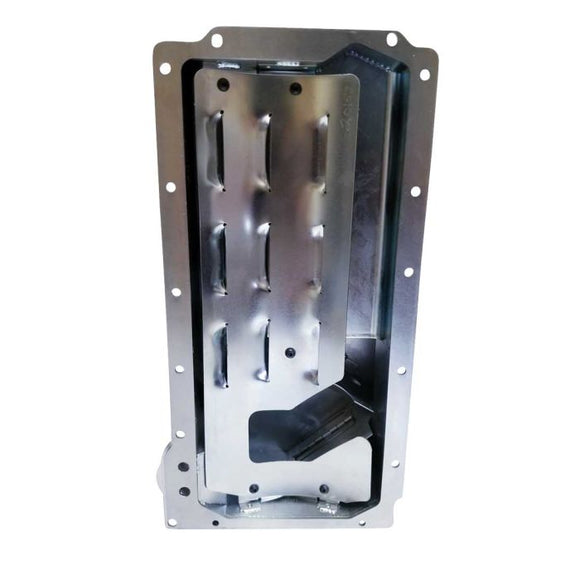

• Features a race proven three trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• Has a removable windage tray for horsepower savings and oil control, please note that engine block mounted windage trays are not needed and will interfere
• Includes a Billet Aluminum Spin-On Oil Filter Adapter that accepts a 22mm thread Moroso No. 22463 or O.E.M. oil filter
• Designed to be used with GM F-Body 98-02 dipstick tube GM Part No. 12628771 and dipstick GM Part No. 12551581
