Moroso GM LT Swap (w/Rear Sump & Spin-On Oil Filter Adapter) Wet Sump 5qt 5-7/8in Aluminum Oil Pan

20155

Aluminum, Wet Sump, 5 Quart Capacity 5-7/8" Deep, 8-5/8" Wide 8-1/2" Long

Engine Application: GM LT Series

Fits: LT Engine Conversions that require a Rear Sump (Check Measurements)

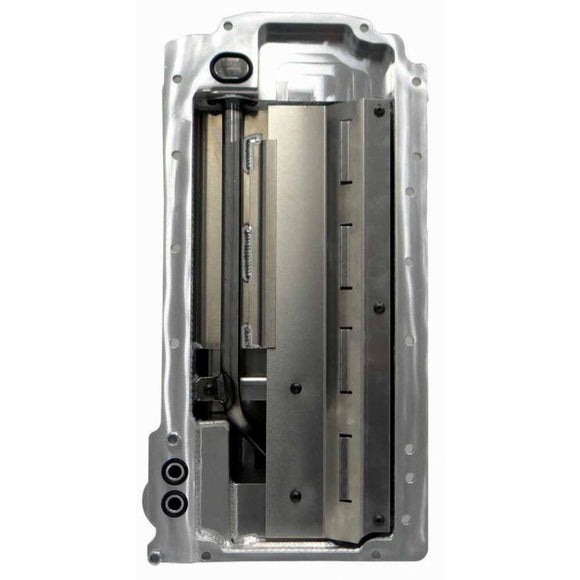

• Due to the O.E.M. GM LT oil pans having the oil pump pickup built into the oil pan, our LT oil pan has a thick billet aluminum O-ringed rail incorporates a removable pickup, a billet front sump and a location to mount our billet aluminum spin-on oil filter adapter
• Fabricated aluminum construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction
• Front of the oil pan is 1-7/8" deep to the beginning of the 5-7/8" Deep, 8-5/8" Wide, and 8-1/2" Long sump
• Features a trap door baffle and a removable windage tray that wraps around the oil pump pickup for horsepower savings and oil control

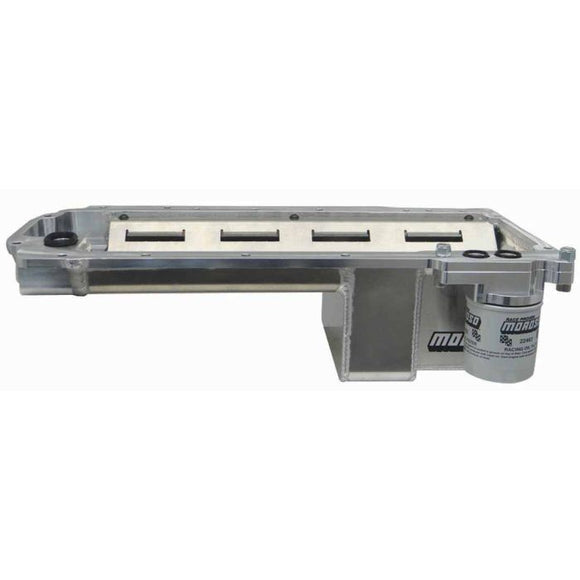

• Includes a billet aluminum adapter that allows a 22mm thread Moroso No. 22463 Racing or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
• For dipstick, use GM part No.12643278 dipstick and GM part No.12652951 dipstick tube
• The included dip stick bung is designed to be used with GM Part # 12652951 Dipstick Tube and 12643278 Dipstick
