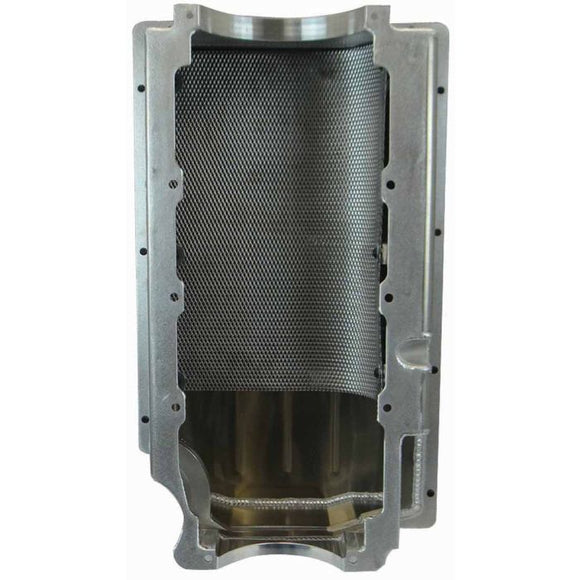

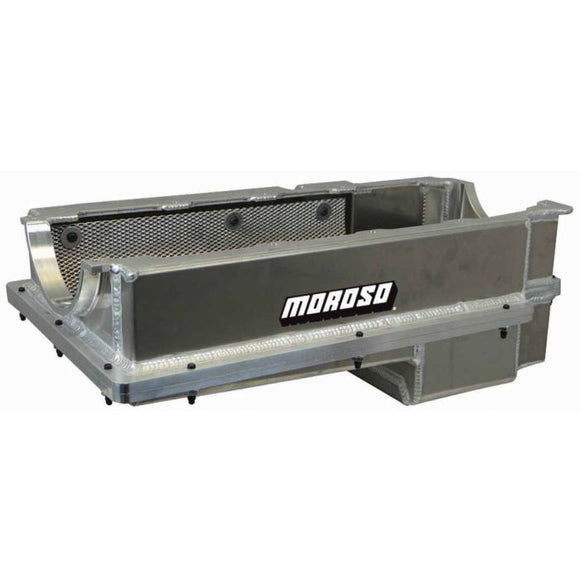

Moroso Chevrolet Big Block Mark IV (w/Double Power Kick Outs) Wet Sump 6-7qt 8in Aluminum Oil Pan

20376

Aluminum, Wet Sump, 7 Quart Capacity, 8" Deep

Engine Application:Mark IV style (except Gen V and Gen VI)

Fits: Top Sportsman, Top Dragster Pro Mods needing wet sump and ability for frequent lower-end inspection

• Fully fabricated, aluminum; utilizes "race" pan rail bolt pattern
• Removable bottom with o-ring billet flange
• Internal uni-directional screen
• Power kick-out design for maximum horsepower
• For use with 168-tooth flywheel combination
• Sump design works with Moroso spur gear and gerotor billet oil pumps
• Billet end seals ensure consistent sealing surface to billet front covers and rear main caps
• Accepts 4.75" stroke with aluminum rods
