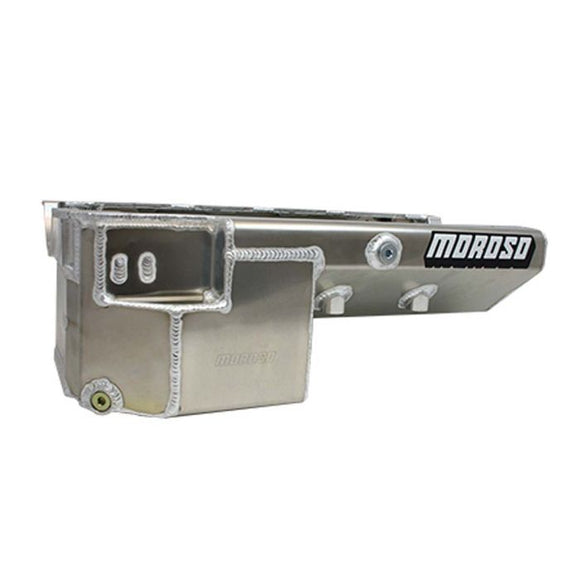

Moroso Chevrolet Big Block Mark IV (w/-16An External Pick Up) Wet Sump 6-7qt 8in Aluminum Oil Pan

20486

Aluminum, Wet Sump, 7 Quart Capacity, 8" Deep

Engine Application: Mark IV style (except Gen V and Gen VI)

Fits: Fits: Competition Eliminator, Super Gas, Super Comp and Bracket Cars. Installation may require modifications to cross-member; check dimensions carefully before ordering

• Designed to be used with a External Oil Pump, oil pan has a sump mounted billet aluminum pickup that accepts a -16AN Male Fitting
• Fully fabricated aluminum with billet end seals to ensure consistent sealing surface to billet front covers and rear main caps
• Utilizes "race" pan rail bolt pattern, recommended oil pan gasket, Moroso No. 93156
• Double kick-out design ensures up to 4.75" stroke with aluminum rods, wide main cap clearance and maximum horsepower

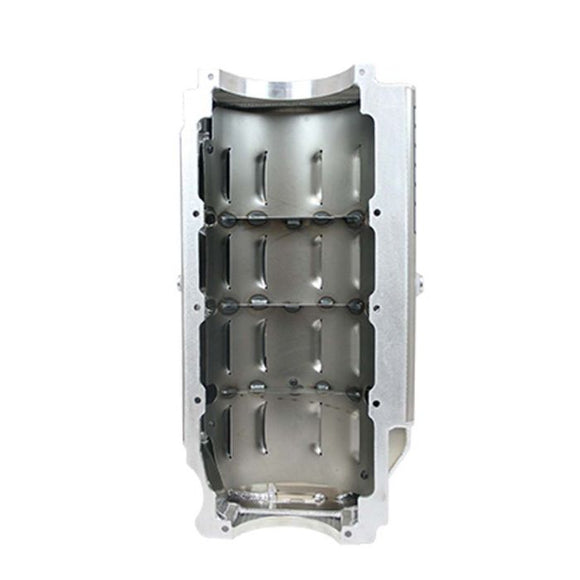

• Full length solid louvered windage tray with main cap partitions for maximum power and oil control
• Features one O-ring magnetic drain plug, two -8AN drain backs, alternator notch
• For use with 168-tooth flywheel combination
