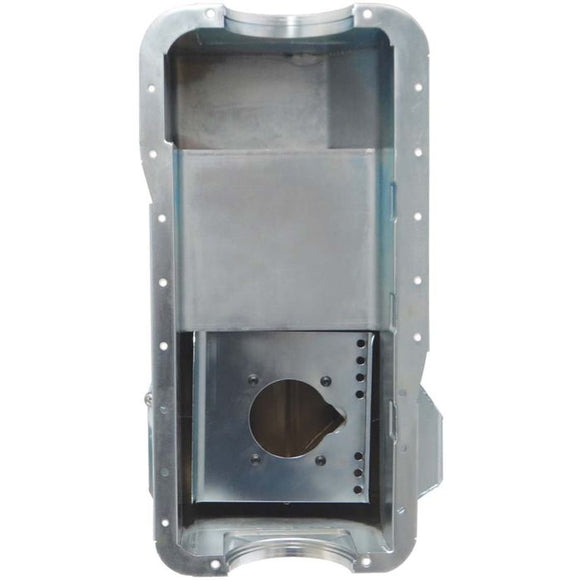

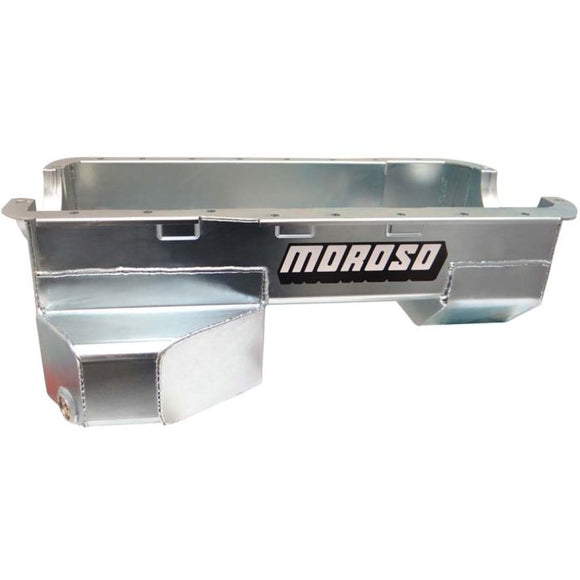

Moroso Ford 289-302 (w/Rear Sump) Road Race Baffled Wet Sump 7qt 7.5in Steel Oil Pan

20533

Steel, Wet Sump, Rear Sump, 7 Quart Capacity, 7-1/2" Deep

Engine Application: 289-302

Fits: 1979-up Mustang, 1981-'88 Thunderbird & Cougar, 1979-'86 Capri and other Ford rear sump applications

• Oil pans have thick precision laser cut steel rails with a clear zinc finish
• Billet end seals for greater sealing than a core based oil pan
• Clears all 4-bolt main caps including 4-bolt rear
• Accepts 3.40" stroke with most steel rods
• Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in the oil pump pickup area during hard acceleration, cornering and braking
• Designed for Road Racing, makes an excellent Drag Race or Kit Car oil pan
• Fits 2005-up Mustang SCCA and NASA racecars with 302 engines
• Includes ½" N.P.T. oil temperature bung and magnetic drain plugs
• Compatible with most starter/flywheel combinations
• For use with 1 piece, rear sump oil pan gasket such as Part No. 93160 for 302 applications
