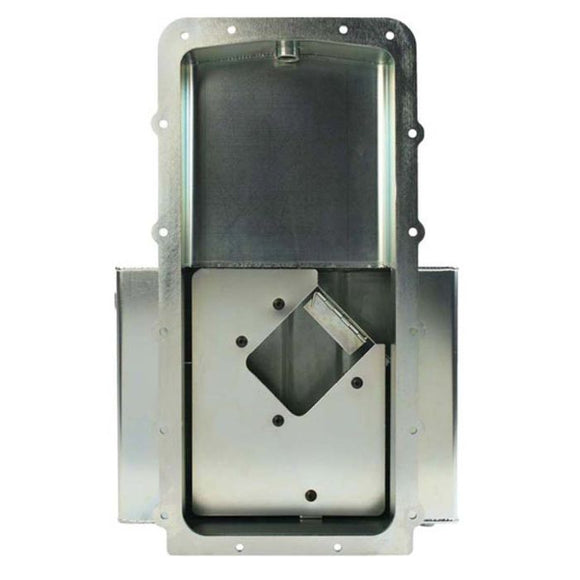

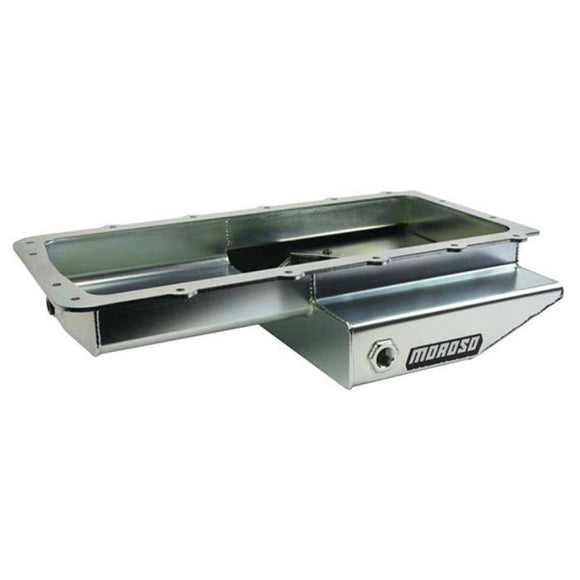

Moroso Ford 5.0 Coyote/Cobra (w/Rear Sump) Road Race Baffled Wet Sump 9.5qt 4.5in Steel Oil Pan

20570

Steel, Wet Sump, 9-1/2 Quart Capacity, 4-3/8" Deep

Engine Application: Ford "Coyote"/5.2 "Voodoo" Engines

Fits: Cobra Kit Cars that require a rear sump oil pan

• Designed for Cobra Replicas that require a shallow, rear sump oil pan
• Fully fabricated steel with a clear zinc finish
• Oil pan has a thick, steel rail with a 4-3/8" deep, 10-3/4" long by 14-1/2" wide rear sump
• Designed to be used with the 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick
• Features a race-proven, four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• 1/2" NPT fitting for supercharger drain back
• 1/2" NPT fitting for oil temperature sender
• 20 mm fitting for the factory oil level sensor*
• Requires the use of Oil Pump Pickup No. 24570
