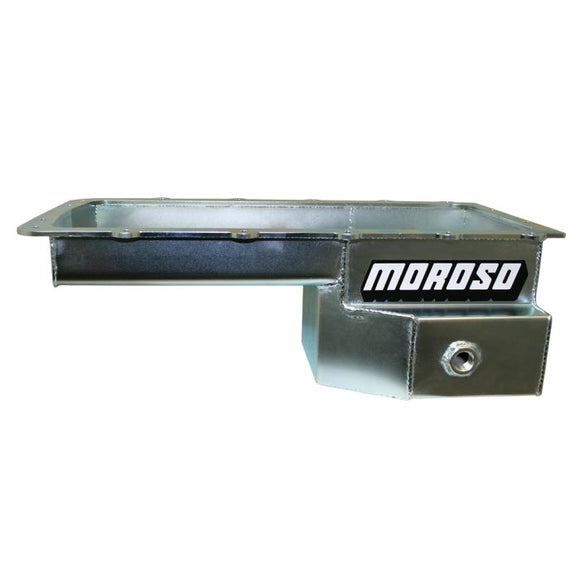

Moroso Ford 5.0 Coyote/Fox Swap (w/Rear Sump) Road Race Baffled Wet Sump 7.5qt 6-5/8in Steel Oil Pan

20575

Steel, Wet Sump, 7.5 Quart Capacity, 6-5/8" Deep
Engine Application: Ford 5.0 Coyote
Fits: '79-'93 Mustang with 5.0 Coyote/5.2 Voodoo swaps using BBK or American Racing Headers

• Pan has a thick steel or billet aluminum rail
• Designed to be used with Moroso Part No. 22936 or 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick
• Steel with a clear zinc finish

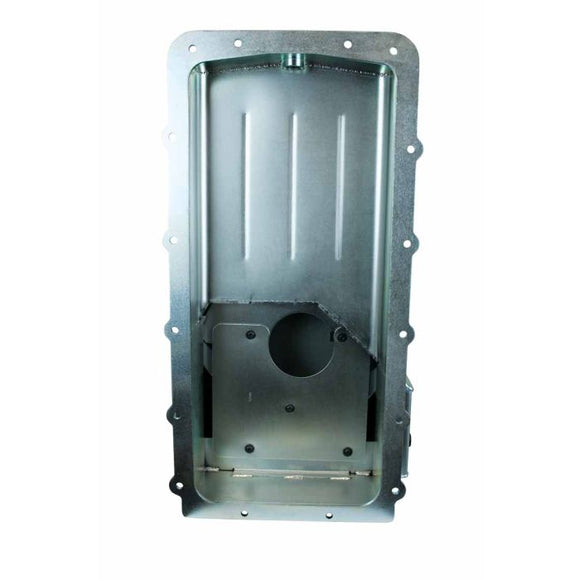

• Features a race proven, trap door assembly and anti-slosh baffle that keeps oil contained in the oil pump pickup area during road racing and street/strip usage
• 1/2" NPT fitting for supercharger drain back
• 1/2" NPT fitting for oil temperature sender
• 20 mm fitting for the factory oil level sensor*
• On Gen 1 & 2 Coyote//Voodoo engines use factory oil pump pickup and on Gen 3 Coyote/Voodoo engines use Part No. 24578
