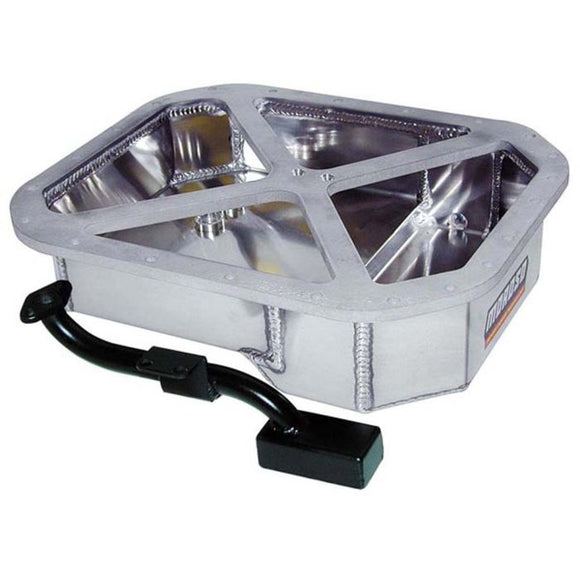

Moroso Mazda 13B Rotary (w/Rear Sump) Drag Race Baffled Wet Sump 6.25qt 4in Aluminum Oil Pan

20940

Aluminum, Wet Sump, 6-1/4 Quart Capacity (with stock oil cooler installed), 4" Deep

Engine Application: 13B Rotary (Non FD or Renesis)

Fits: Tube chassis cars and other cars without a cross-member located under engine (check dimensions for clearance)

• Fully fabricated
• 3/8"-thick billet rail with integral X-brace greatly strengthens engine assembly to reduce twisting and axial deflection

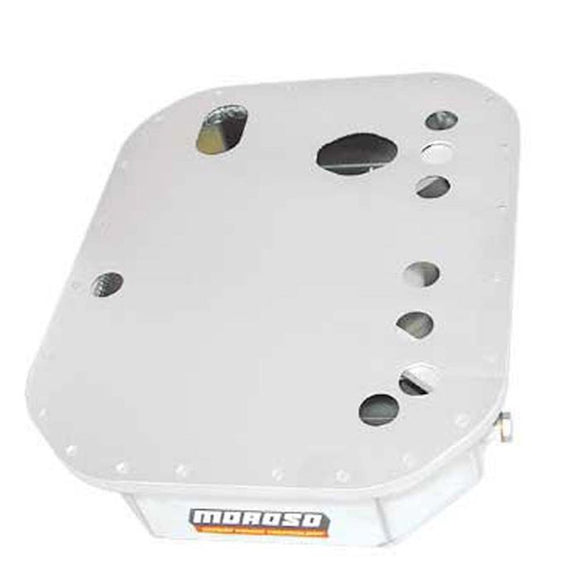

• Includes .080"-thick aluminum Baffle Plate to de-aerate and cool return oil (other baffles are only .060" thick)
• Includes an oil pump pickup specially designed for this pan; access holes in pan facilitate mounting pickup to the front cover
• For Drag Race & Street
• Includes magnetic drain plug with extra copper washer and pan mounting kit with hex-drive steel studs to eliminate stripping the engine block and serrated-face flare nuts to withstand vibration
• Accommodates stock pan gasket and dipstick (with modification)
