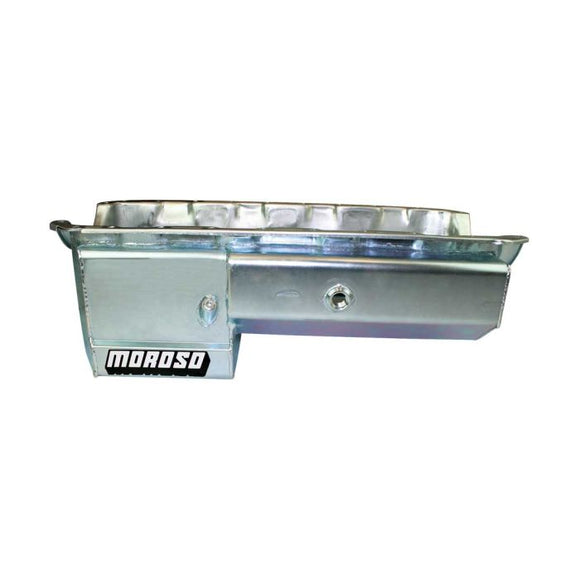

Moroso Chevrolet Big Block Mark IV Drag Race Baffled Power Pouch Wet Sump 7qt 8in Steel Oil Pan

21048

Steel, Wet Sump, 7 Quart Capacity, 6" Front Depth, 8" Rear Depth

Engine Application: Mark IV Style (except Gen V & Gen VI)

Fits: Bracket and Budget Super Stock cars. Some modifications may be necessary to fit crossmembered cars.

• Core based oil pan
• Kick-out for horsepower savings
• Accepts up to a 4.75" stroke with steel rods and a 4.5" stroke with aluminum rods

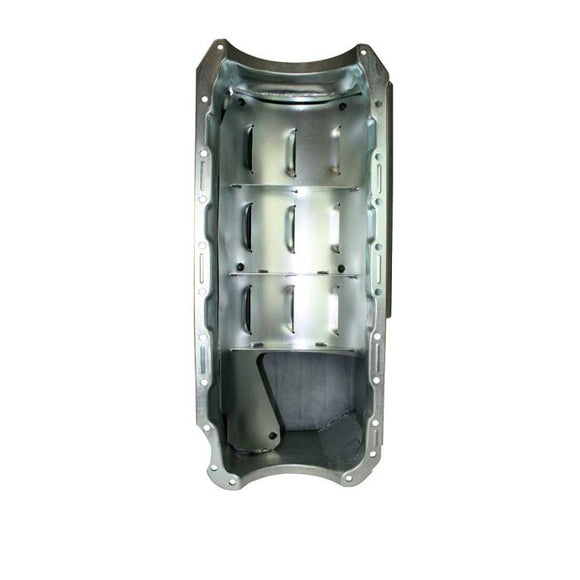

• Partitioned and louvered windage tray with main cap dividers separates oil quickly from rotating assembly for ultimate oil control and maximum horsepower gain
• Includes provisions to accept Moroso Dipstick Kit Parts Nos. 25970, 25971, 25973 or similar dipstick tube kits with compression fitting
• Used with GM-style or Tilton-style starter and 168-tooth flywheel
• Clear zinc plating for durability and corrosion resistance
