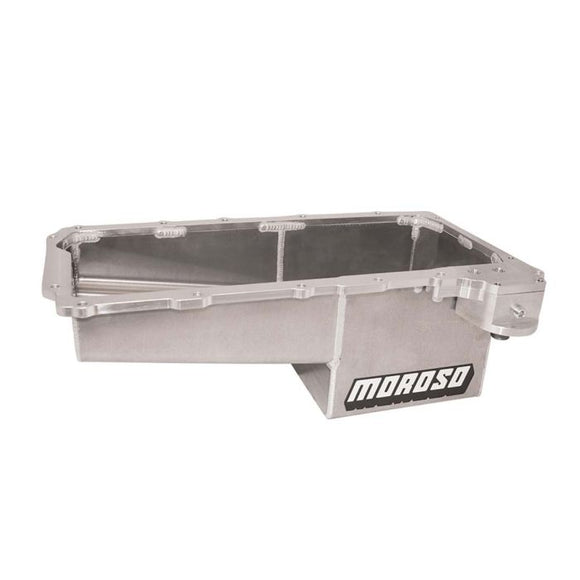

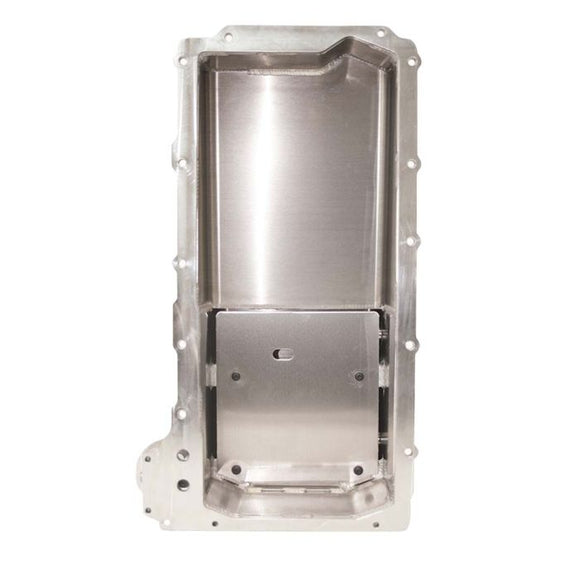

Moroso GM LS/16-Up COPO Camaro (w/Rear Sump & -16An Pick Up) Wet Sump 7qt 7.5in Aluminum Oil Pan

21157

Aluminum, Wet Sump, 7 Quart Capacity, 7-1/2" deep

Engine Application: GM LS Series

Fits: COPO Camaro '16-up and rear sump applications (check measurements)

• Features trap door baffle assembly, anti-climb baffle and anti-slosh baffle to keep oil contained in the oil pump pickup area during Drag Racing
• Oil pan has a thick aluminum rail with a fabricated aluminum sump
• Clears 4.25" stroke with most steel rods and can be used with Moroso Part Nos. 22941, 22943 or O.E.M. windage trays such as Part Nos 12611129, 19244049, 19202609 - check clearances first
• Features a billet aluminum adapter with a 1/4" N.P.T. sensor port that accepts a 22 mm thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
• Has a -16AN External Pickup
