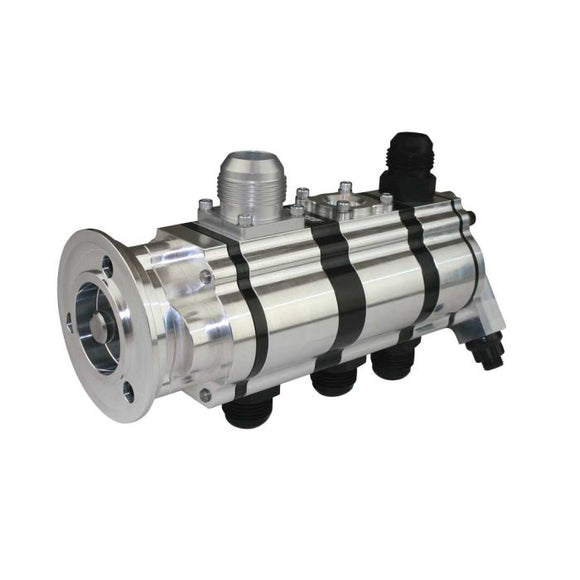

Moroso Tri-Lobe Dry Sump 3-Stage Oil Pump for Procharger V-Band 1.200

22393

V-Band Mounting Flange For ProCharger Front Drive

Updated 1.500" Pressure Section for use with V-Band Mount ProCharger Supercharger Front Drive assemblies optimized output for 50% drive ratio

• Tri-lobe aluminum scavenge sections featuring individual timing gears to ensure proper clearance at high RPM
• 1.500 Spur gear pressure section based on Moroso's billet wet sump design; 1.700 scavenge sections
• Includes multiple spring rates and an adjustable bypass to optimize your oil pressure for smooth, reliable oil pressure
• V-band mount for use with ProCharger front drive; ProCharger Part No. 3PCCD-032 required for installation
• Includes replaceable fittings: Pressure Section: -16AN Inlet, -12AN Outlet; Scavenge Inlets -12AN, Return-16AN
