CJM Industries MK3 TT V4 Chassis Mounted Splitter | 2024188-3TTv4CS

Made in USA - 2 year warranty on mfg defects. Wear and tear is not covered.

Our brackets provide an easy way for you to build your own splitter blade out of plywood or other sheet materials at home.

Product details and install notes:

• Brackets & rods come in raw aluminum unless powder coating option is selected. Expect some visible imperfections in the material from the cutting and bending process on raw aluminum parts.
• This will not fit with any front mount/twin intercooler.
• If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.

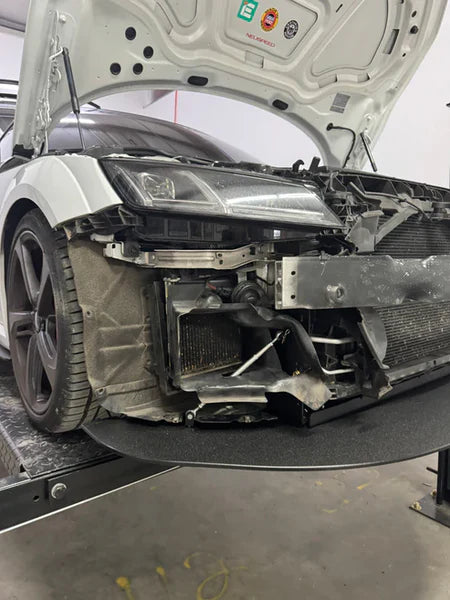

• Requires drilling two 11mm holes in the crash bar for install.
• Trimming the factory splash guard under the bumper is required (not the bumper).

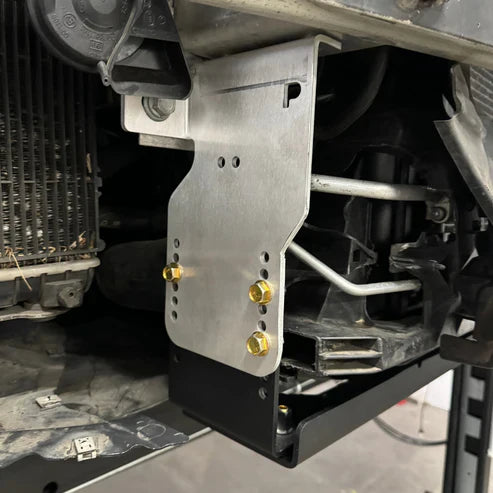

• Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice. They are height adjustable in 12mm increments.

Our brackets are designed to support up to 100mm of stick-out past the OEM bumper. Exceeding this size can result in damage to the brackets, impact bar or frame horn.
