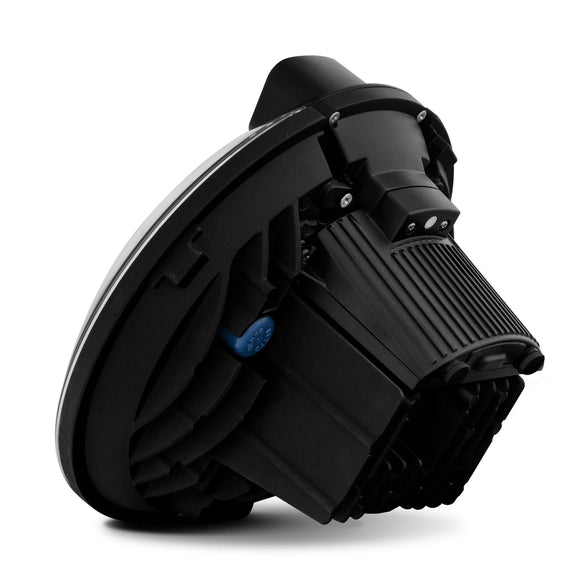

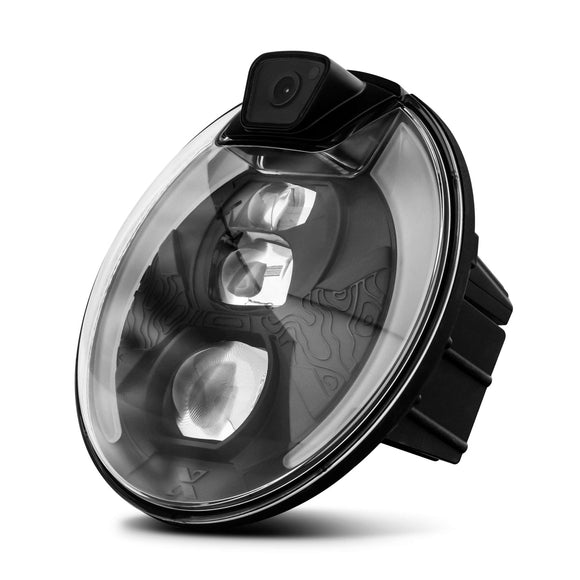

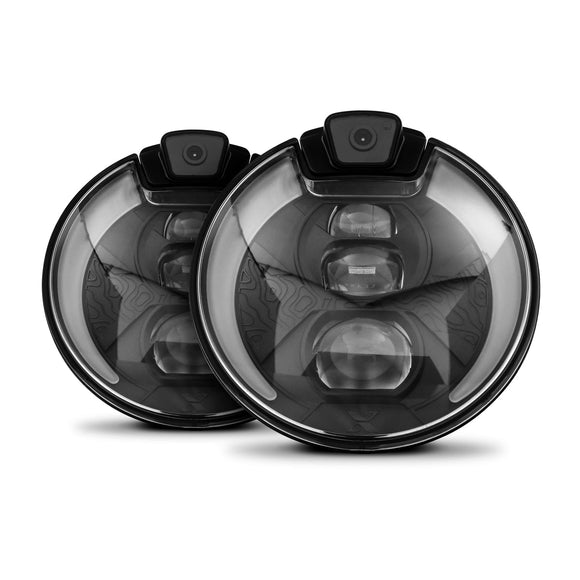

Project X 7In Headlight w/ 4K / wide angle Camera

HL538822-1

ABOUT

Light the way and record your adventure with the PROJECT X ELITE OPTX headlights. Featuring a pair of integrated UHD cameras, the ELITE OPTX allows you to view your travels in true 4K UHD. With our OEM fitment and quality combined with an impressive 3000 raw lumen output (high beam) the ELITE OPTX brings a new standard to aftermarket headlights. Control the Cameras via our PROJECT X mobile app (available on Android and Apple) where you can view, record and replay.

Designed with the Jeep Wrangler JK in mind, these units are plug and play and feature an integrated CANBUS/anti-flicker module and come with everything you need for install.

ELITE OPTX are DOT complaint and meet all standards of FMSS section 108 permitting on road use in the United States.

POWER

• Input Voltage: 12V DC
• LED Power: 9 - 16 DC
• Current Draw @ 12V:
  3.50A (High Beam)
  2.50A (Low Beam)
• Operating Temp: -40°F to 140°F

LUMENS

• Raw Lumens: 3,000 (High Beam), 2,000 (Low Beam)
• Effective Lumens: 1,645 (High Beam), 909 (Low Beam)
• Beam Pattern:
  Forward Lighting - High Beam (DOT)
  Forward Lighting - Low Beam (DOT)
• Color Temp: 5700°K

CONSTRUCTION

• Wireless Range(Bluetooth):
  33 feet (without interference or obstruction)
• Housing: Aluminum / ADC 12
• Lens: Hard Coated Polycarbinate
• IP Rating: IP67 / DOT
• Weight: 2.5 lbs

CAMERA

• View Angle 4K Camera: FOV(D)138°
• View Angle 1080P Camera: FOV(D)138°
• Image Sensor: 8MP (4K) 2MP (1080P)
