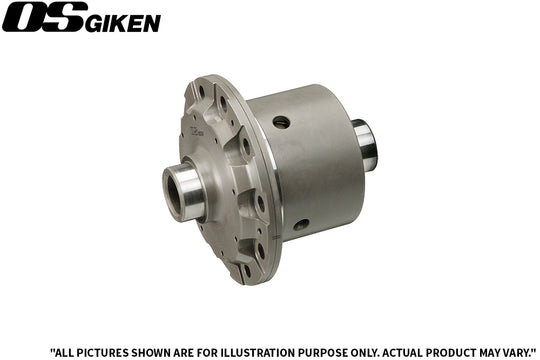

OS Giken Porsche Boxster S (1st Gen) G50 Type Super Lock LSD

PR133-HA

The OS Giken Super Lock LSD uses our patented pressure ring design that allows for smooth, progressive locking. This design is a spline-through-side-gear design that allows for fitment of more friction plates (up to 2x as many as competitors versions).

• All components are chemically heat treated for maximum durability
• All components are constructed from a high-grade steel alloy
• Gears are raw-forged for maximum strength
• Clutch disks are precision-machined simultaneously on both sides to extremely tight tolerances resulting in minimal warpage.
• LSD case is machined from a single billet piece to ensure uniformity.

The OS LSD standard spec allows for low preload while still retaining a fully progressive 100% lock capability. Operation is quiet and the progressive locking allows for smooth predictable locking. When replacing an open diff, equipping an

OS LSD will completely improve the driving experience while maintaining everyday drivability.

• PORSCHE Carrera 2 (996) / BOXSTER S 986

• 986 Boxster S G8620
• Carrera S G9630 Gearbox
• 996 G9600 Gearbox

Specification

• Ramps - 38/25
• Lock Timing - 456
• Total Plates - 24
• Preload - 10S

Installation Notes:

• Refer to OEM Service Manual for install

• Carerra 2 requires LSD reconfiguration - notify dealer prior to purchase
